Zoll M series Defibrillator DAC Board Module 9301-0370-01 Biphasic Bridge Assembly 1001-0182

Zoll M series DAC Board 9301-0370-01

Zoll M series Defibrillator DAC Board Module 9301-0370-01 Biphasic Bridge Assembly 1001-0182

► Brief Description

Zoll M series Defibrillator DAC Board Module 9301-0370-01 Biphasic Bridge Assembly 1001-0182 - It is the Zoll M series defibrillator DAC It is a very important part of the defibrillator, which is mainly composed of two printed circuit board assemblies (PWbas). The two parts are the power supply and the isolation circuit required to transmit the biphasic defibrillation pulse, respectively. They can cooperate with each other, and their main role is to compensate for the drop in capacitor voltage when providing energy to the patient load.

The Zoll M series Defibrillator DAC Board Module 9301-0370-01 Biphasic Bridge Assembly 1001-0182 is used but has been tested to be complete and fit for use.

► Specification

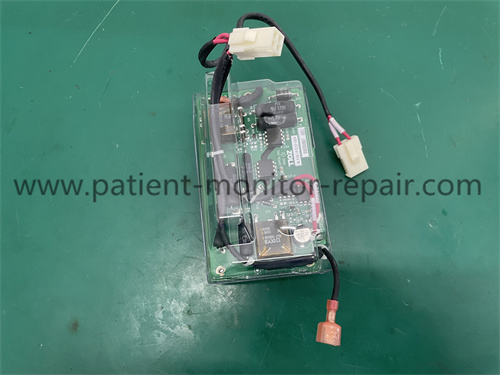

► Detailed Photos

Thanks for your time, if you are interested in Zoll M series Defibrillator DAC Board Module 9301-0370-01 Biphasic Bridge Assembly 1001-0182, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours , wish you a happy life.
