Zoll M Series Defibrillator System Interconnect Board with Faxing Capability 9301-0306-03

Zoll M Series Defibrillator System Interconnect Board

Zoll M Series Defibrillator System Interconnect Board with Faxing Capability 9301-0306-03

► Brief Description

Zoll M Series Defibrillator System Interconnect Board 9301-0306-03 - This board is a component that can be connected to multiple parts of the defibrillator and has the function of transmitting information.

When encountering many failures, you can also check whether it is a problem with the System Interconnect Board 9301-0306-03. For example, when the defibrillator displays a "CHECK RECORDER" fault message, it generally means that the paper tray is empty, paper is jammed, or the recorder door is open. If there is indeed a fault, you can replace the paper sensor board, system interconnect board and/or system board. to solve.

► Specification

► More Details

Removing the system interconnect board

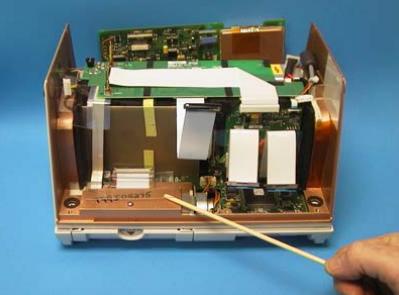

Step 1: Remove the clear plastic head isolator.

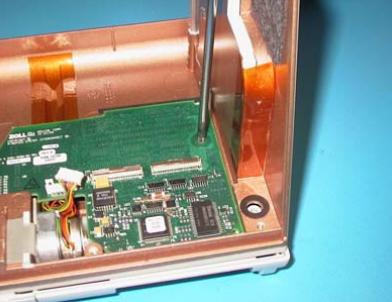

Step 2: Remove the two screws on each side of the system interconnect board.

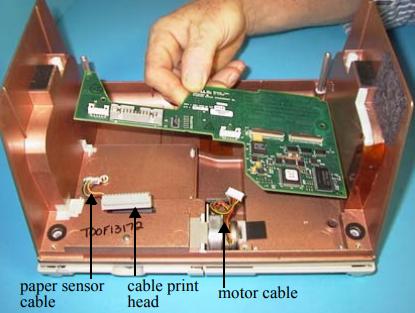

Step 3: Disconnect the cables and lift the system interconnect board out of the device.

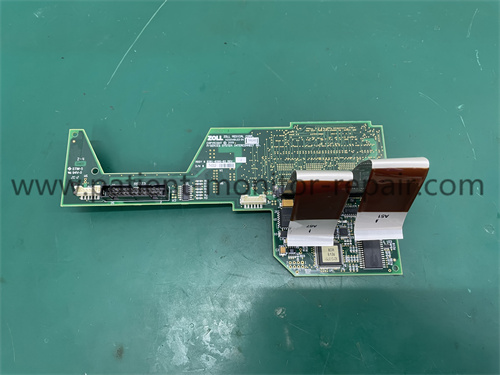

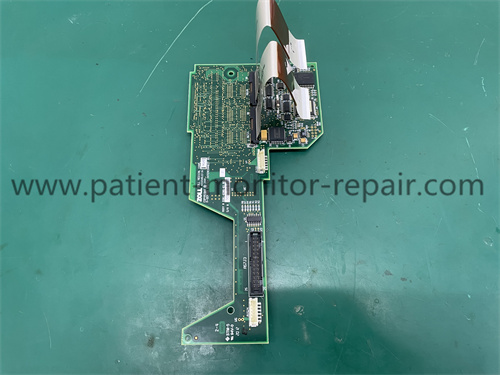

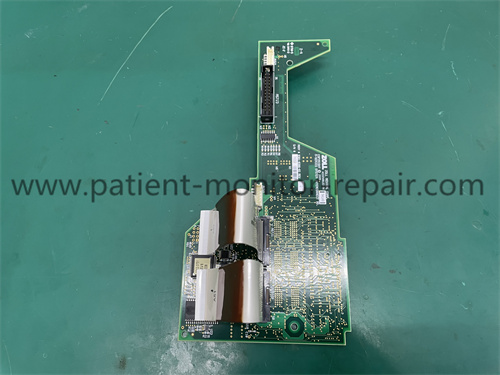

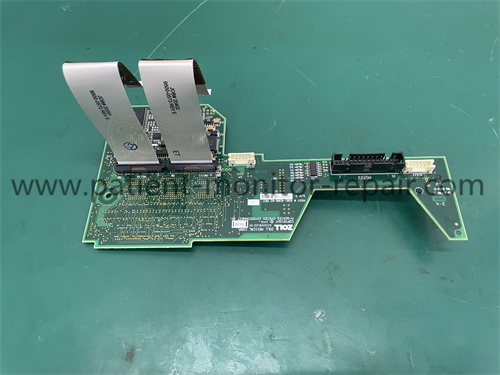

► Detailed Photos
