Zoll M Series Defibrillator Printer/ Recorder Motor Assembly C26M048A30-V, 5VDC, 1001-0104

Zoll M Series Defibrillator Recorder Motor

Zoll M Series Defibrillator Printer/ Recorder Motor Assembly C26M048A30-V, 5VDC, 1001-0104

► Brief Description

Zoll M Series Defibrillator Printer/ Recorder Motor - This component is a very important part of the printer part of the defibrillator. It can receive instructions from the motherboard and drive various parts in the printer to operate.

Zoll M Series Defibrillator Printer/ Recorder Motor is an original product but used. The performance is complete and meets the usage requirements, and can be tested for you before shipment. It provides a 90-day warranty period. If there are any non-human quality problems, you can contact us at any time for replacement or repair.

► Specification

► Removing the Printer / Recorder Motor

1. First you need a Phillips screwdriver, an Exacto-Knife and Kapton tape;

2. Next, remove the paper tray from the Zoll M series defibrillator, pull out and press upward the locking tab at the rear of the paper tray;

3. Remove the front panel assembly, upper housing assembly, system board, battery interconnection board, high-voltage module assembly, sensor, print head and motor cables, and system interconnection board;

4. Use needle-nose pliers to carefully lift the pad upwards;

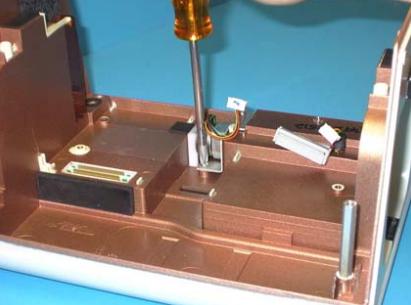

5. Remove the motor bracket mounting screws;

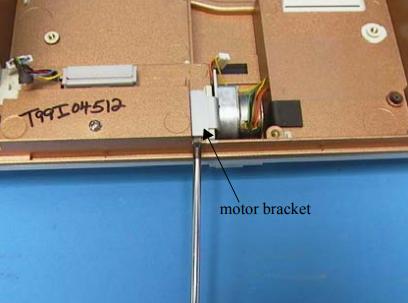

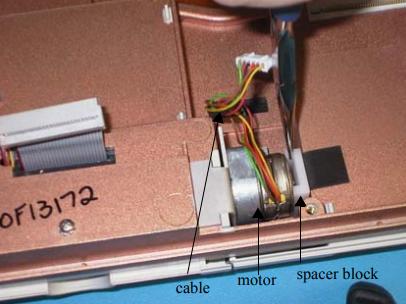

6. Use a screwdriver to pry the motor bracket and lift the motor upward to complete the disassembly.

► Detailed Photos

Tags： Zoll M Series Defibrillator Printer/ Recorder Motor Assembly C26M048A30-V 5VDC 1001-0104, Printer/ Recorder Motor, C26M048A30-V 5VDC 1001-0104,
