Zoll M Series Defibrillator Print Head Assembly 1001-0101 GPA0025-03N 9320-0400 with Pivot Rod 9320-

Zoll M Series Defibrillator Print Head

Zoll M Series Defibrillator Print Head Assembly 1001-0101 GPA0025-03N 9320-0400 with Pivot Rod 9320-0401

► Brief Description

Zoll M Series Defibrillator Print Head Assembly - It is the core component of the entire defibrillator printer. It can cooperate with other components inside the printer to print the recorded data on paper and present it to the user for reference.

This print head is original but second-hand. It has been inspected by professional engineers and can be printed and tested before shipment to ensure that the print head assembly is fully functional and meets the usage requirements.

► Specification

► Removing the Print Head Assembly

1. First you need to prepare tools, a Phillips screwdriver is enough;

2. The second step is to remove the lower shell assembly in advance;

3. Unscrew the two screws on the paper box guide rail, and then remove the paper box guide rail;

4. Disconnect the ribbon cable from the print head;

5. Disassembly is complete when the pivot pin is removed for reuse.

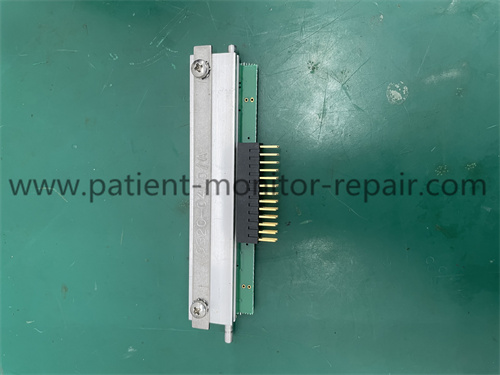

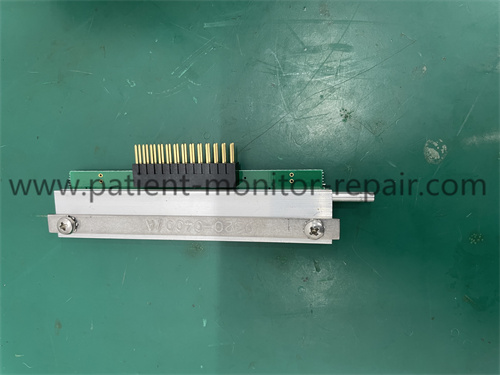

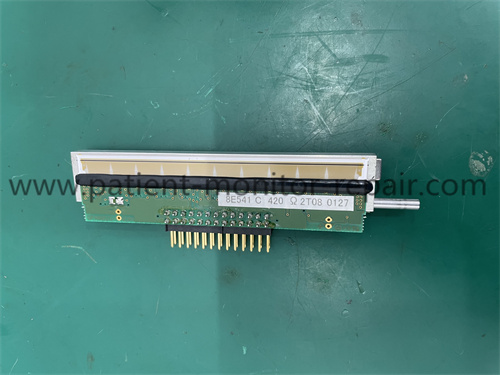

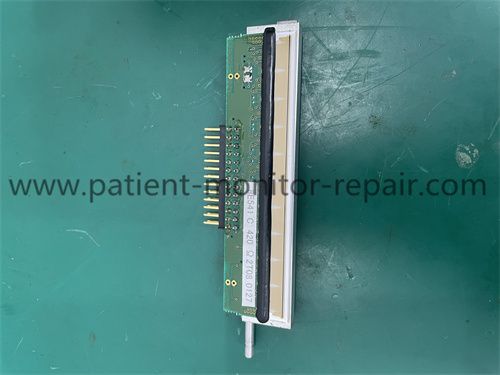

► Detailed Photos

Tags： Zoll M Series Defibrillator Print Head Assembly 1001-0101 GPA0025-03N 9320-0400 with Pivot Rod 9320-0401, Print Head Assembly, 1001-0101 GPA0025-03N 9320-0400,
