Zoll M Series Defibrillator PCMCIA Card Socket Assembly With Stabilizer Board 9320-0304

Zoll M Series Defibrillator PCMCIA Card Socket Assembly

Zoll M Series Defibrillator PCMCIA Card Socket Assembly With Stabilizer Board  9320-0304 and Conn., Assembly

► Brief Description

Zoll M Series Defibrillator PCMCIA Card Socket Assembly - It is mainly located under the back shell of the defibrillator and provides a connection port for the PCMCIA card. This PCMCIA interface module can support two card slots at the same time, allowing simultaneous connection of Type I and/or Type II PCMCIA cards. These cards can store data. By connecting the PCMCIA to the Zoll M series defibrillator, the data in the card can be read by the machine, and the data in the machine can also be stored in it.

► Specification

► More Details

Removing the PCMCIA card slot assembly

1. First, you need to prepare a Phillips screwdriver, and then you need to remove the lower shell component first;

2. Use a screwdriver to remove the two screws holding the card slot holder, and then lift up the card slot assembly.

If you need to reinstall, just follow the reverse steps.

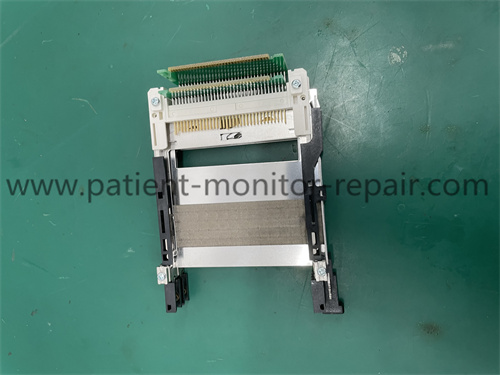

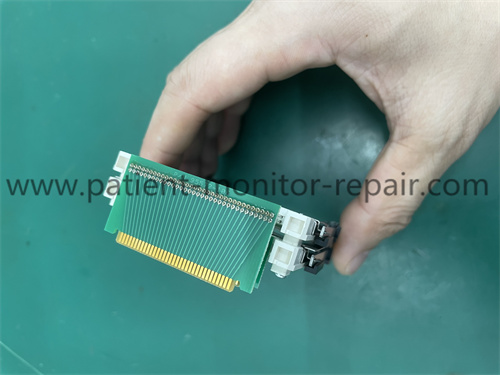

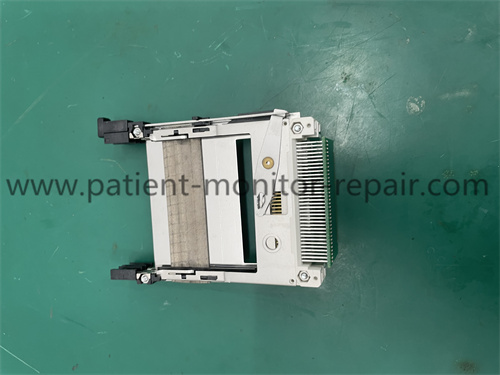

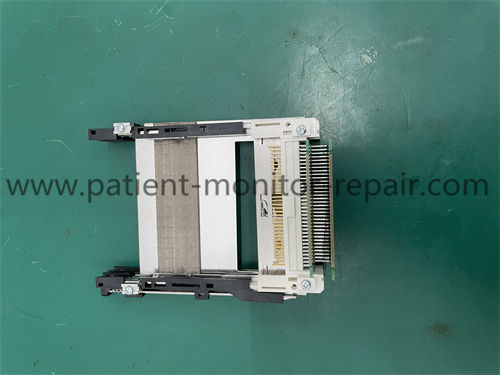

► Detailed Photos

Thanks for your time, if you are interested in Zoll M Series Defibrillator PCMCIA Card Socket Assembly With Stabilizer Board  9320-0304 and Conn., Assembly, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours , wish you a happy life.

Tags： Zoll M Series Defibrillator PCMCIA Card Socket Assembly, PCMCIA Card Socket Assembly, PCMCIA Card Socket,
