Valleylab Force FX FX-8C Electrosurgical Generator Machine Right Heat Sink Tank Damping Resistor

Valleylab FX-8C Right Heat Sink

Valleylab Force FX FX-8C Electrosurgical Generator Machine Right Heat Sink with Tank Damping Resistor

► Brief Description

Valleylab Force FX FX-8C Electrosurgical Generator Right Heat Sink with Tank Damping Resistor - It is an extremely important part of the equipment. Its main function is to dissipate heat for the working parts inside the equipment. Because when the electrosurgical device is working, the various parts working together will cause the temperature inside the device to continue to rise. If heat dissipation is not carried out in time, the performance of the machine will be affected or other dangerous situations will occur.

► Specification

► More Details

Remove the right radiator:

1. First you need to turn off the power and unplug the power cord;

2. Unscrew the five screws that secure the cover to the chassis, and lift the cover away from the chassis;

3. Remove the control board;

4. Unscrew the three screws that secure the bracket to the radiator;

5. Disconnect the cable to the tank damping resistor on the right radiator from J12 on the power/RF board;

6. On the right side of the chassis, unscrew the two screws that secure the right radiator base to the rail below the power supply/RF board;

7. Lift the radiator and disconnect it from the power supply/RF board.

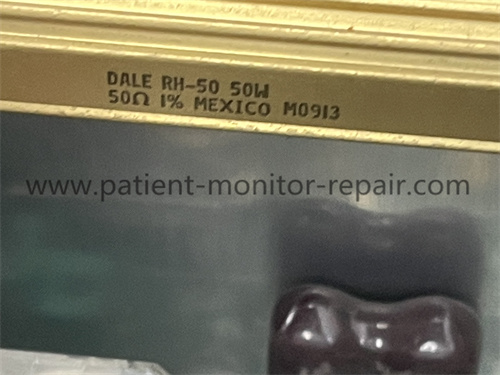

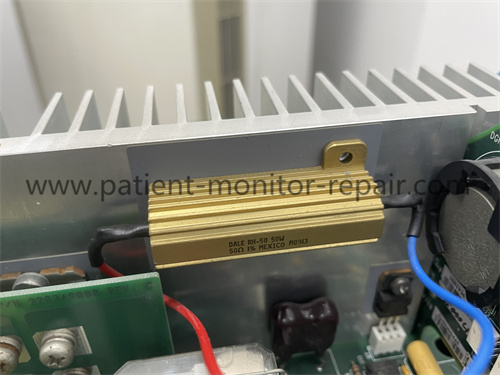

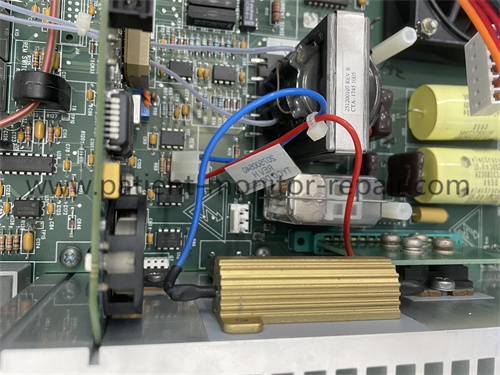

► Detailed Photos

Tags： Valleylab Force FX FX-8C Electrosurgical Generator Right Heat Sink with Tank Damping Resistor, Right Heat Sink, Tank Damping Resistor,
