Fan for Valleylab FX-8C Electrosurgical Unit

Valleylab Force FX FX-8C Electrosurgical Generator Machine Fan 8412L 220005011

► Brief Description

Valleylab Force FX FX-8C Electrosurgical Generator Fan 220-005-011 - Its main function on this device is to form a radiator together with other heat dissipation parts. Continuous operation will cause the temperature of the internal components of the equipment to continue to rise. If heat dissipation is not provided in time, it may affect the performance of the equipment or lead to other dangerous situations. The Valleylab Force FX FX-8C Electrosurgical Generator Fan 220-005-011 is a very important part of the radiator assembly.

► Specification

Fan Replacement：

1. Remove the power supply/RF board and attached heat sink;

2. Disconnect the fan connector from the power supply/RF board;

3. Turn the power supply/RF board over and remove the four screws and nuts securing the fan to the board;

4. Place the new fan on top of the power supply/RF board and secure it to the board with four nuts and screws;

5. Connect the fan connector to the power supply/RF board;

6. Reinstall the power/RF board and attached heat sink.

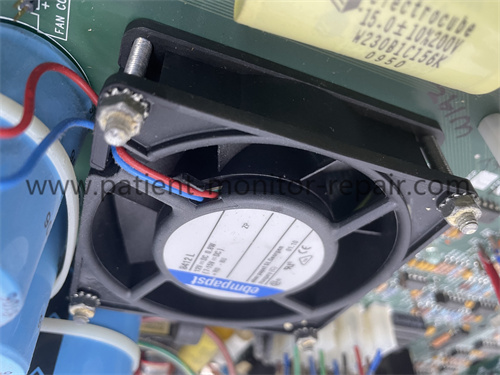

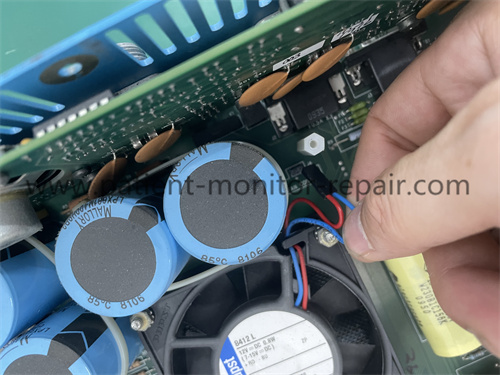

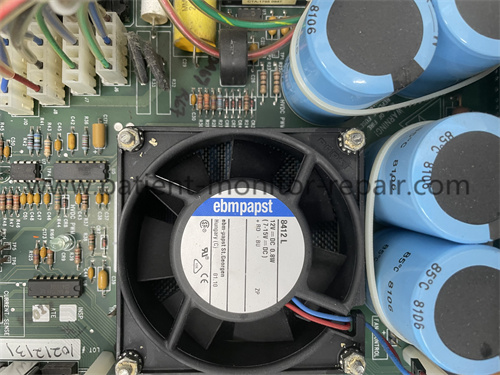

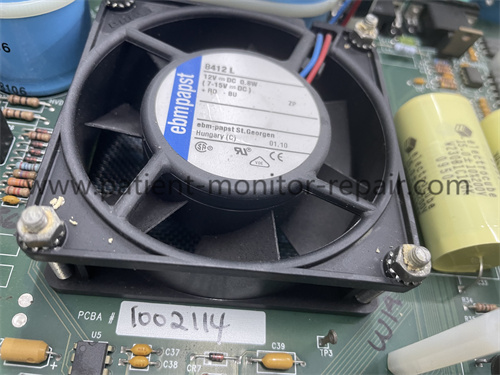

► Detailed Photos
