Valleylab Force FX FX-8C Electrosurgical Generator Machine Display Board 1001936_D S100300445

Valleylab Force FX-8C Display Board

Valleylab Force FX FX-8C Electrosurgical Generator Machine Display Board 1001936_D S100300445

► Brief Description

Valleylab Force FX-8C Electrosurgical Generator Display Board 1001936_D S100300445 - The display board is a core component of this electrosurgical device and is located in the front panel assembly. A number of different other parts are included, including the RF indicator, seven-segment LED power setting display, REM alarm LED, and CEM LED indicator. Moreover, the switch circuit of the Valleylab Force FX-8C Electrosurgical Generator Display Board 1001936_D S100300445 also includes LED and lamp driver circuits, power selection switch, mode selection switch, REM switch circuit and CEM switch circuit.

The Valleylab Force FX-8C Electrosurgical Generator Display Board 1001936_D S100300445 is used, but its performance and condition are good. It has been fully inspected by engineers to ensure that it meets the usage standards.

► Specification

►More Details

Remove the display board：

1. To turn off the generator, you need to unplug the power cord from the wall socket;

2. Unscrew the five screws that secure the cover to the chassis, and lift the cover away from the chassis;

3. Remove the control board;

4. Disconnect and remove the front panel assembly;

5. Remove and disconnect the display board from the front panel.

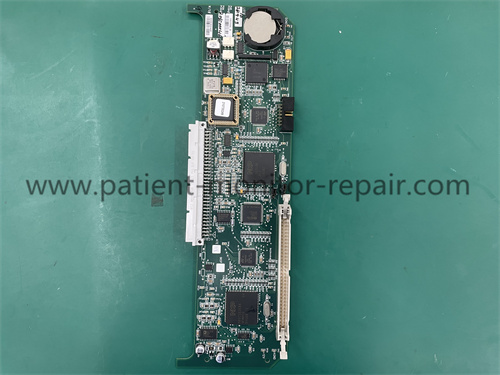

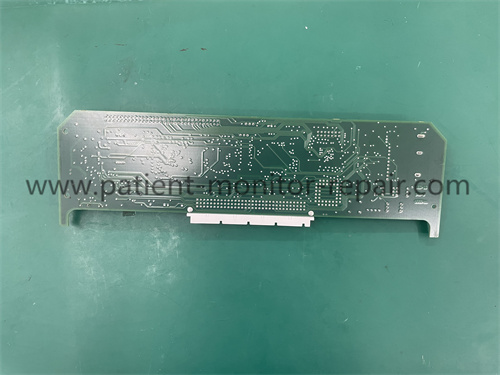

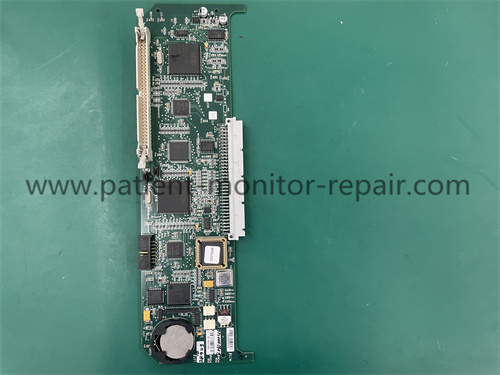

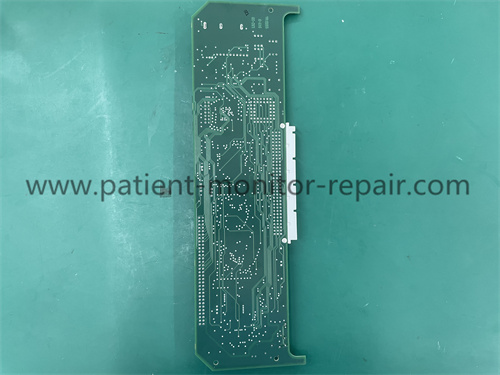

► Detailed Photos

Tags： Valleylab Force FX-8C Electrosurgical Generator Display Board 1001936_D S100300445, Display Board, 1001936_D S100300445,
