SCHILLER DEFIGARD 4000 Defibrillator Printer Assembly No.3.930420
Announcer: PMR Med Release Time：2023-12-30
SCHILLER DG4000 Defibrillator Printer
SCHILLER DEFIGARD 4000 Defibrillator Printer Assembly No.3.930420
► Brief Description
SCHILLER DEFIGARD 4000 Defibrillator Printer Assembly - This defibrillator can print out the monitored patient data through a printer for user reference. The printer uses thermal printing technology and can print out the electrocardiogram and trends stored in the device. The Printer Assembly can print three different electrocardiogram curves, helping medical staff make more accurate and faster judgments.
► Specification
|
Brand: |
SCHILLER |
Product Category: |
Medical Parts |
|
Product Type: |
Printer |
Application: |
DEFIGARD 4000 |
|
SCHILLER No. |
3.930420 |
Main Color: |
Blue, White |
|
Printer Type: |
High-resolution Thermal Printhead |
||
|
Resolution: |
8 dots/mm (amplitude-axis), 40 dots/mm (time-axis) at 25 mm/s |
||
|
Paper: |
Thermoreactive, Z-folded, 72 mm width, length approx. 20 m |
||
|
Print speed: |
25 mm/s |
||
|
Recording tracks: |
3-channel display, with optimal width of 72 mm |
||
|
Condition: |
Warranty: |
90 Days |
|
►More Details
When using the SCHILLER DEFIGARD 4000 Defibrillator Printer Assembly, errors will occur. The following are some situations and solutions:
• No paper in printer - paper needs to be inserted;
• Paper tray open - the paper tray needs to be closed;
• Printer paper jam - the paper tray needs to be opened and the jammed paper removed;

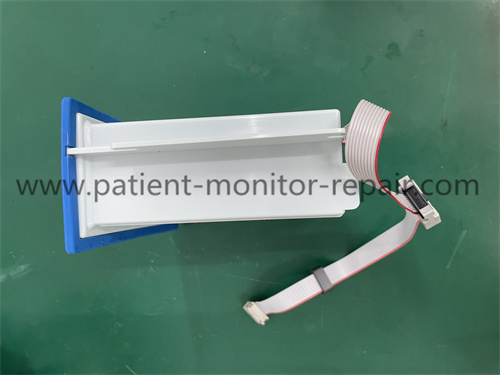

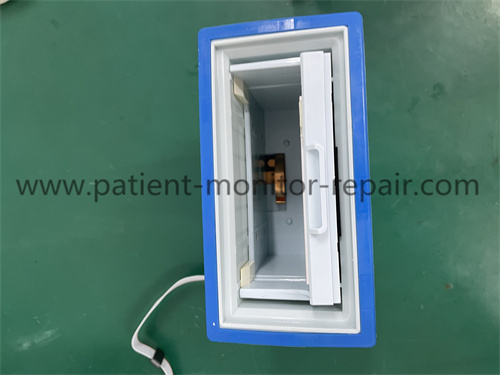

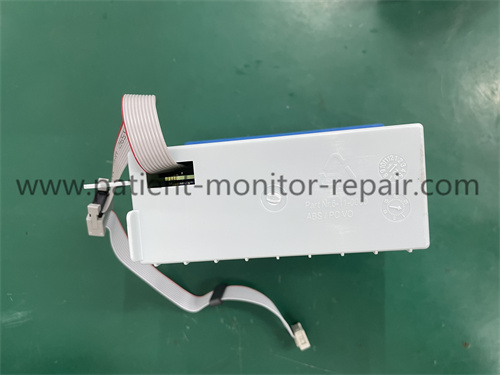

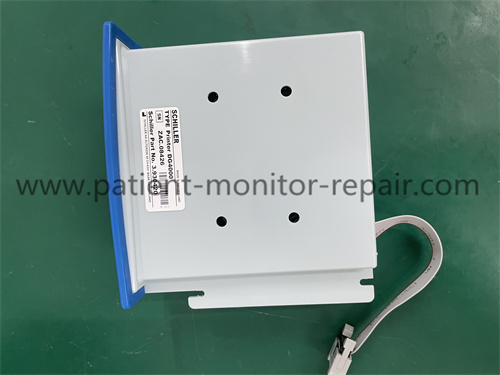

► Detailed Photos
Thanks for your time, if you are interested in SCHILLER DEFIGARD 4000 Defibrillator Printer Assembly No.3.930420, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours , wish you a happy life.
