Philips M1668A 5-lead ECG Trunk Cable AAMI/IEC 2.7m 12-pin 989803145061

Philips M1668A ECG Trunk Cable

Philips M1668A 5-lead ECG Trunk Cable AAMI/IEC 2.7m 12-pin 989803145061

► Brief description

The Philips M1668A ECG Trunk Cable is used to perform ECG detection on patients, the part number is M1668A / 989803145061. It is a 5-lead ECG patient backbone cable up to 2.7 m (8.9') long and can be used in many medical environments. This Philips M1668A ECG Trunk Cable has a 12-pin ECG input connector for connection to the 5-lead telemetry lead set of the Philips IntelliVue series of patient monitors. And after disinfection and cleaning, it can be reused. The Philips M1668A 5-lead ECG Trunk Cable AAMI/IEC 2.7m 12-pin 989803145061 meets the requirements for clinical use.

► Specification

► Lead Selection

It is important to choose a suitable lead that shows the largest amplitude and cleanest signal so that the QRS complex and R wave, especially the monitor, can be accurately detected. Should choose:

The QRS complex should be tall and narrow (amplitude > 0.5 mV recommended).

R waves should be above or below baseline (but not biphasic).

The P wave should be less than (1/5) the height of the R wave.

The T wave should be less than (1/3) the height of the R wave.

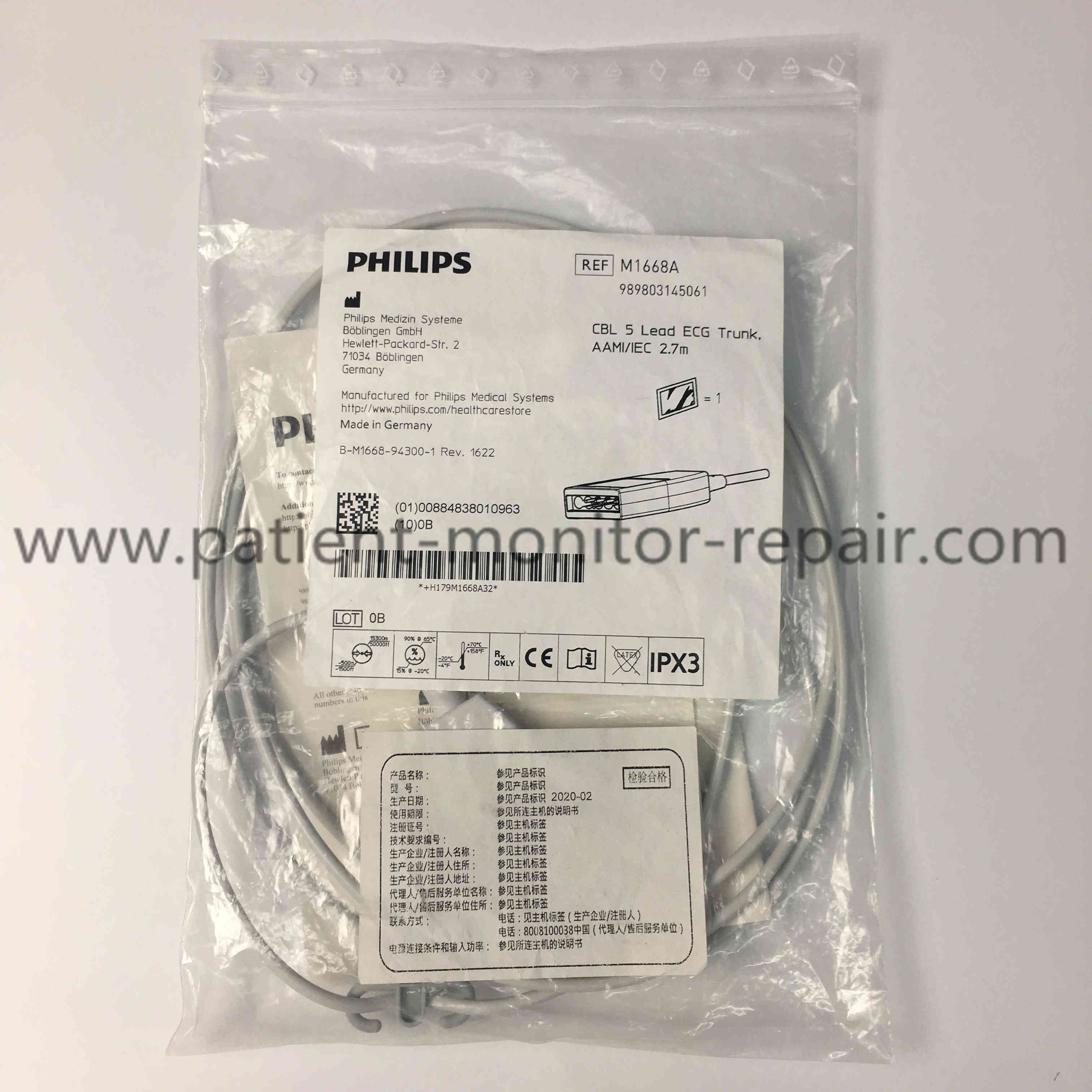

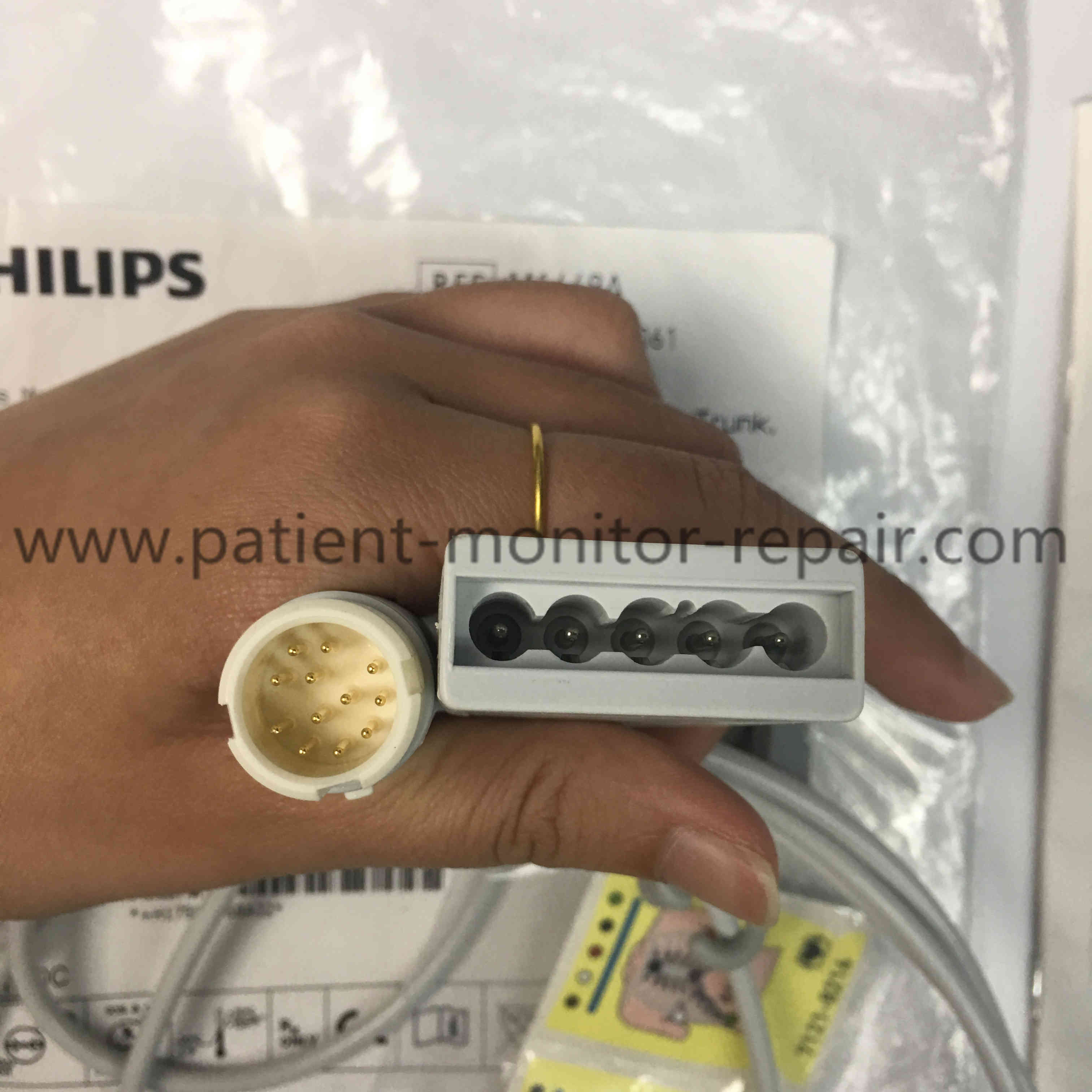

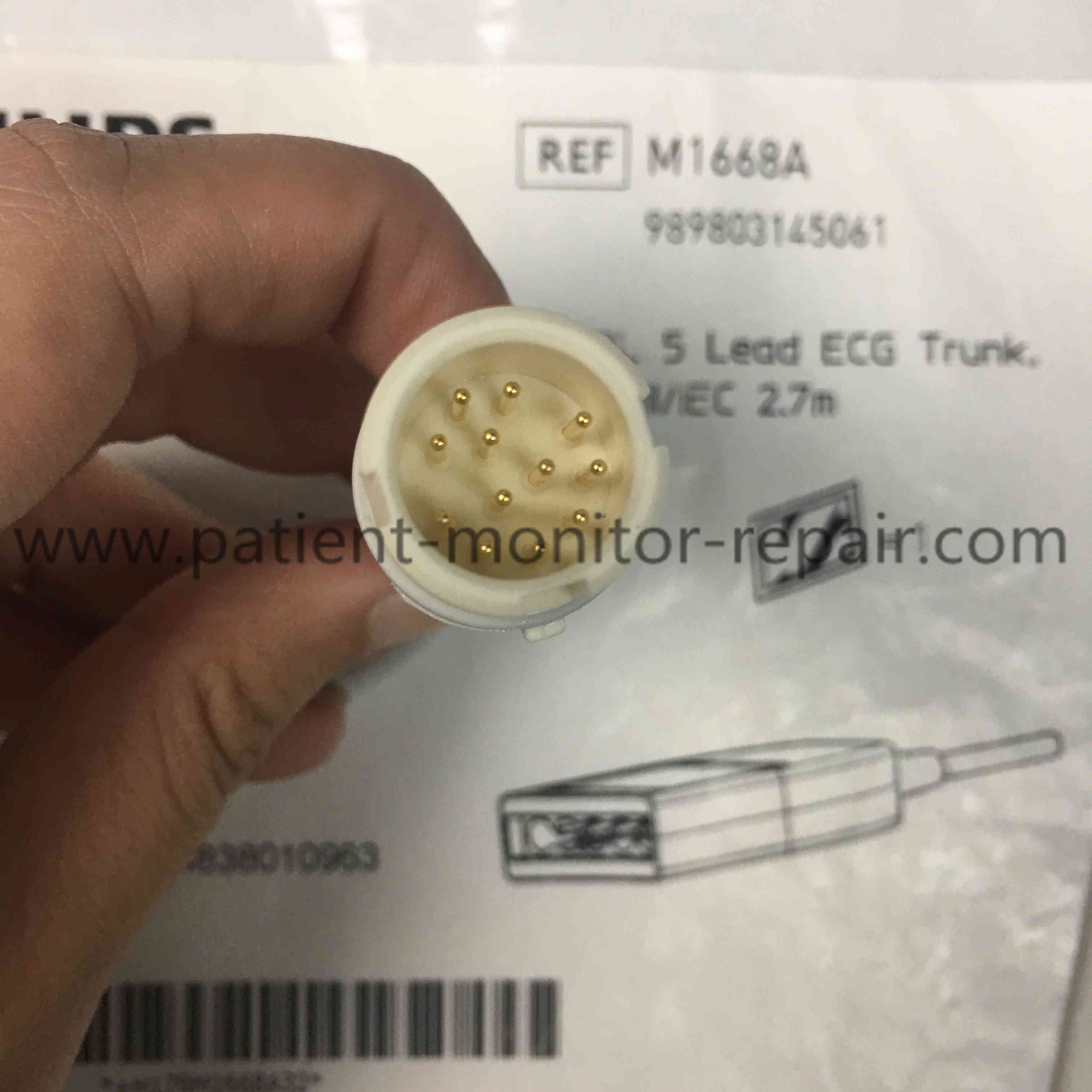

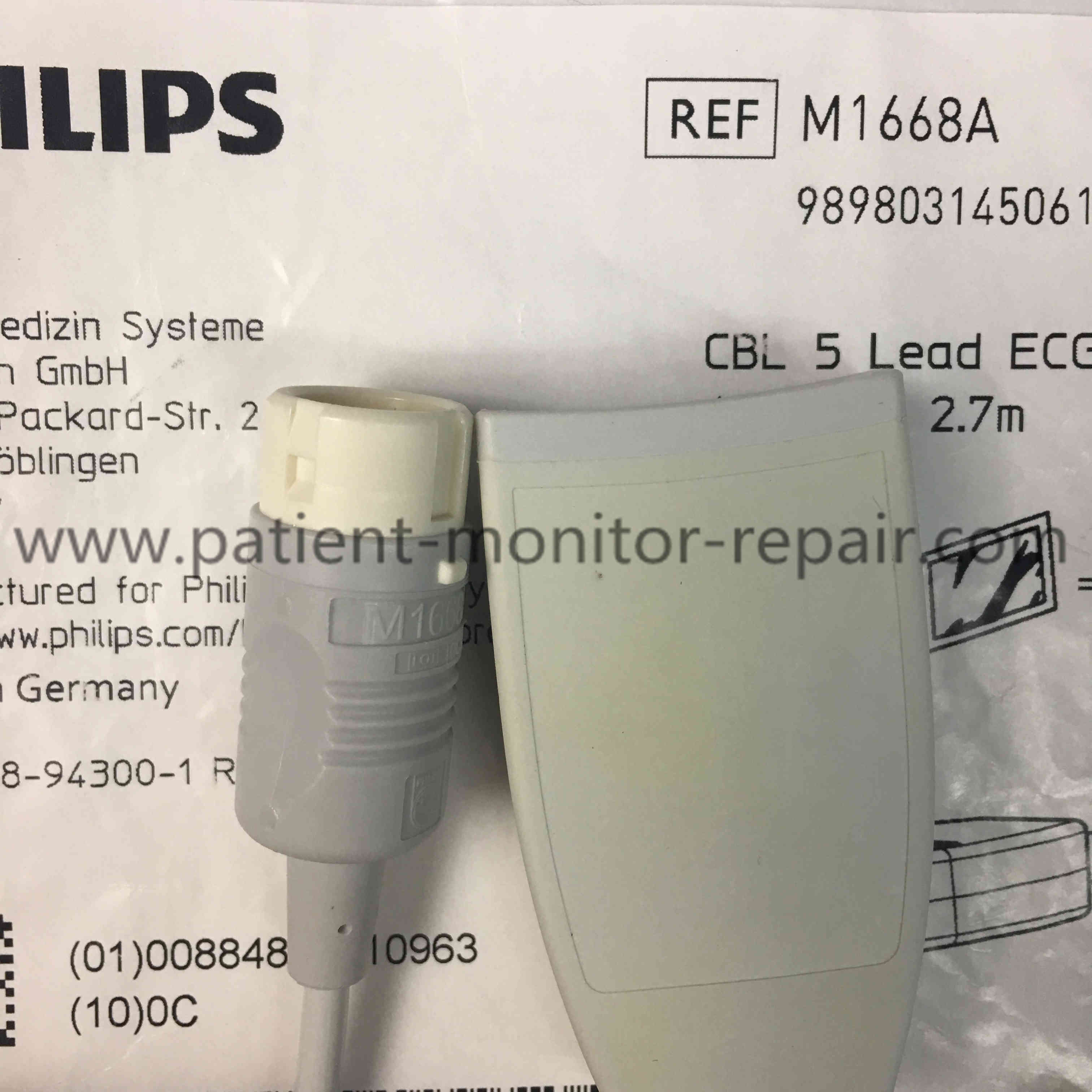

► Detailed Photos

Thanks for your time, if you are interested in Philips M1668A 5-lead ECG Trunk Cable AAMI/IEC 2.7m 12-pin 989803145061, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours, wish you a happy life.
