Philips IntelliVue G5 M1019A Gas Anesthesia Module Including Water Trap
Announcer: PMR Med Release Time：2025-01-04
Philips IntelliVue G5 Gas Module
Philips IntelliVue G5 M1019A Gas Anesthesia Module Including Water Trap
► Brief Description
Philips IntelliVue G5 M1019A Gas Anesthesia Module - is a compact medical product that works with IntelliVue patient monitors via RS232 serial interface. They measure airway gases in ventilated patients receiving general gas anesthesia or emerging from anesthesia and present them on the patient monitor screen for medical staff to view patient status.
These modules generate graphical waveform data and inspired and end-expiratory digital data for the following gases:
• CO2
• N2O
• Two volatile anesthetics (IntelliVue G5)
• O2
• It also generates data for MAC (minimum alveolar concentration) and the patient's airway respiratory rate (awRR).
► Specification
|
Physical Specifications |
|
|
Size (H x W x D): |
93 x 306 x 232 mm (3.66 x 12.05 x 9.13 in) |
|
Weight: |
less than 4 kg (7.94 lb) |
|
Environmental Specifications |
|
|
Operating Temperature: |
10 - 40°C (50 - 104°F) |
|
Storage Temperature: |
-20 - 65°C (-4 - 149°F) |
|
Humidity Limit (Operating): |
5 - 90% RH max @ 40°C (104°F). non-condensing |
|
Humidity Limit (Storage): |
5 - 95% RH max @ 65°C (149°F). non-condensing |
|
Altitude Range (Operating): |
-305 - 2900m (-1,000 - 9,515ft) |
|
Altitude Range (Storage): |
-305 - 5000m (-1,000 - 16,404ft) |

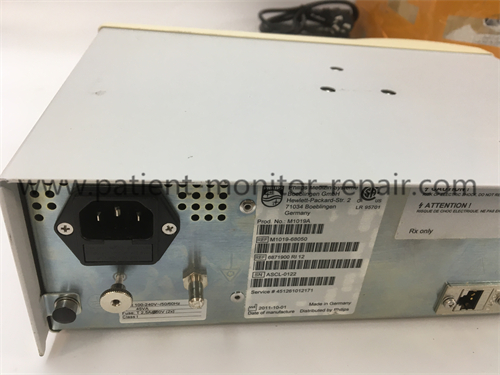

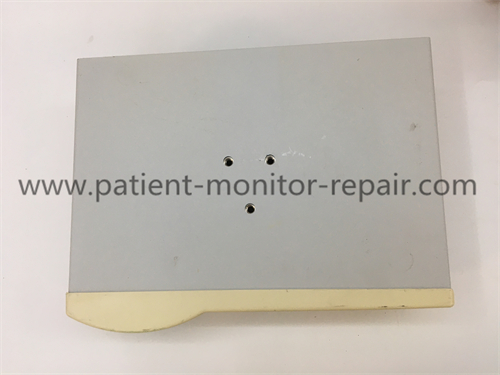

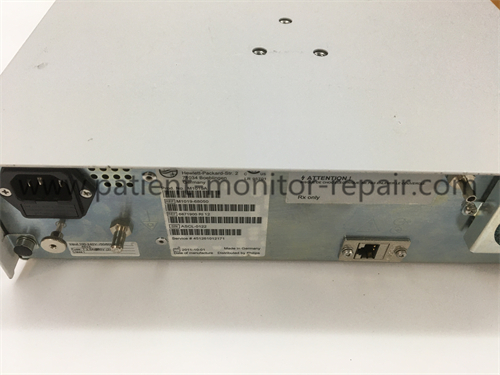

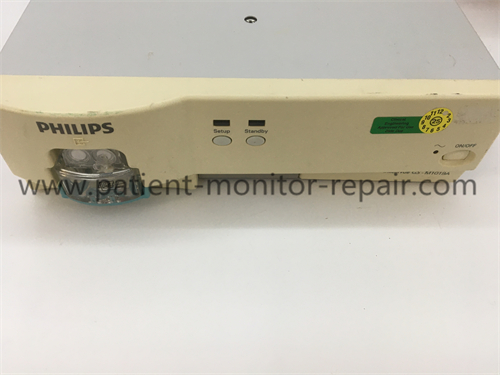

► Detailed Photos
Thank you for your time, if you are interested in Philips IntelliVue G5 M1019A Gas Anesthesia Module Including Water Trap, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours, wish you a happy life.
