Philips Goldway CTG7 Fetal/Maternal Monitor Bottom Cover Case Casing
Announcer: PMR Med Release Time：2024-09-15
Bottom Case for Goldway CTG7 Monitor
Philips Goldway CTG7 Fetal/Maternal Monitor Bottom Cover Case Casing
► Brief Description
Philips Goldway CTG7 Fetal/Maternal Monitor Bottom Cover Case - Made of high-quality engineering plastics, it is durable and can withstand certain external impacts and wear and tear in daily use, and is not easily damaged. It also has good chemical stability and is not easily corroded by common chemical substances in hospital environments, such as disinfectants.
And it has some interfaces or sockets integrated at the bottom for connecting power adapters, external data transmission cables or other accessories, such as USB interfaces, power interfaces, etc., to facilitate device charging and data communication.

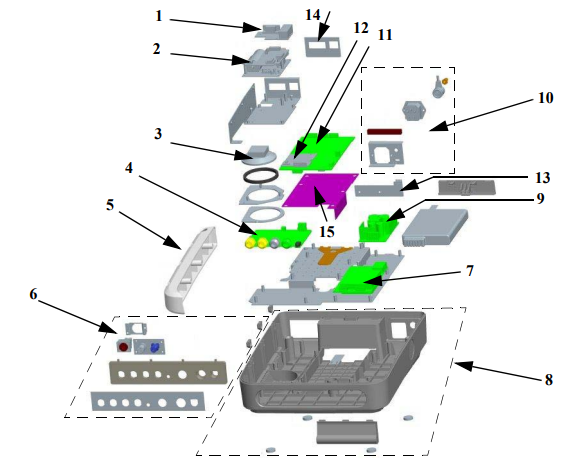

► Main Parts
|
1. |
PCA 4ACN00 V1.4 Pb Free (Interface board) |
|
PCA Interface Board CN00 V1.1 (Interface board) |
|
|
2. |
PCA NIBP Module Assembly C-NIBP312B (NIBP Module) |
|
3. |
3T ASSY Speaker (Alarm speaker) |
|
4. |
CTG7 PCA FM00 (Fetal monitoring module) |
|
5. |
3T PLAST Fixing Inductor (Transducer holder) |
|
6. |
3T Function INTFC ASSY, SpO2/NIBP (Probe socket, SpO2/NIBP) |
|
3T Function INTFC ASSY, SpO2/NIBP/ECG (Probe socket, SpO2/NIBP/ECG) |
|
|
7. |
PCA EECG Module C-ECG7131C V1.2 (ECG module) |
|
8. |
3T ASSY Rear Frame |
|
9. |
ASSY-PWR SMPS LPS54-M (AC/DC power module) |
|
10. |
3T ASSY Power Socket (Power socket) |
|
11. |
3T PCA System Board SYS00 V1.1 (System board) |
|
12. |
PCA SPO2 GISP-N C-ISPO2011B Pb Free (SpO2 module) |
|
13. |
PCA BAT Adapte Board CHG00 V1.3 Pb Free (Battery charger board) |
|
14. |
3T PLAST Interface Film 2 Hole (Interface film) |
|
3T PLAST Interface Panel Film (Interface film, single hole) |
|
|
15. |
3T INSUL System Board Film PVC (System board insulation plastic sheet) |

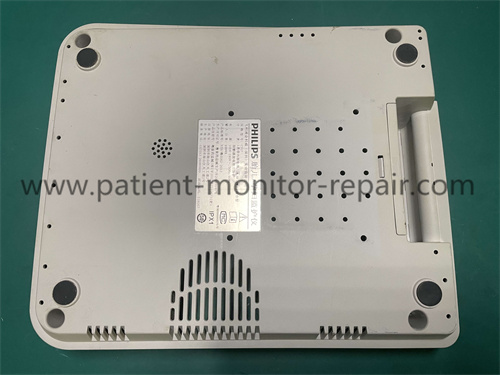

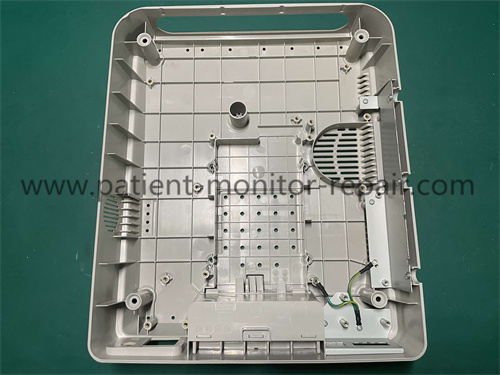

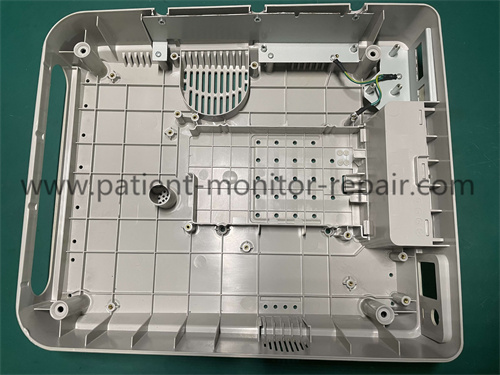

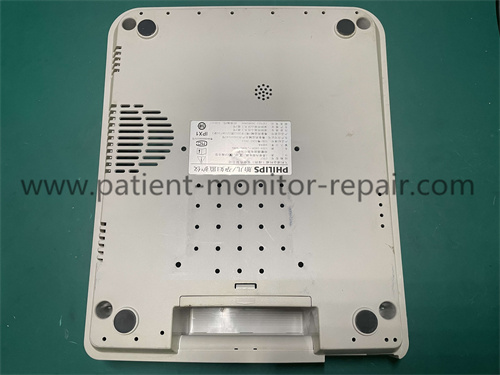

► Detailed Photos
Thank you for your time, if you are interested in Philips Goldway CTG7 Fetal/Maternal Monitor Bottom Cover Case Casing, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours, wish you a happy life.
