Nihon Kohden BSM-2301C Patient Monitor NIBP & Hall Sensor Board UR-3614 UR-3643
Announcer: PMR Med Release Time：2024-10-10
NIBP & Hall Sensor Board UR-3614 UR-3643
Nihon Kohden BSM-2301C Patient Monitor NIBP &; Hall Sensor Board UR-3614 UR-3643
► Brief Description
Nihon Kohden Life Scope BSM-2301C Bedside Patient Monitor NIBP & Hall Sensor Board UR-3614 UR-3643 - Has a pressure sensor for NIBP measurement, which can be used to detect cuff pressure and convert it into an electrical signal. This is an important component for monitoring patient NIBP data, and can be connected to the main board to transmit patient data to the monitor screen for medical staff to view.It is convenient for medical staff to quickly operate and check the patient's status.
► Specification
CN0102 (for Hall Sensor board)
|
Pin Number |
Signal Name |
Signal Description |
|
1 |
+5V |
+5 V supply voltage |
|
2 |
+5V |
+5 V supply voltage |
|
3 |
CUFF0 |
Measurement mode 0 |
|
4 |
CUFF1 |
Measurement mode 1 |
|
5 |
E2 |
Digital ground |
|
6 |
E2 |
Digital ground |

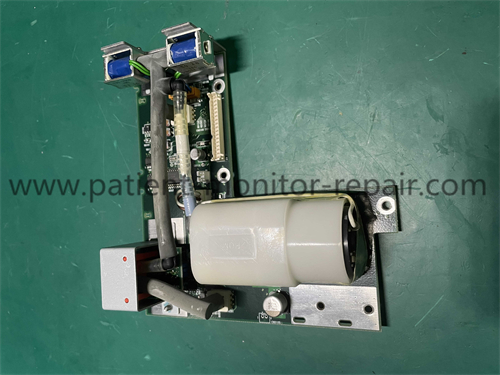

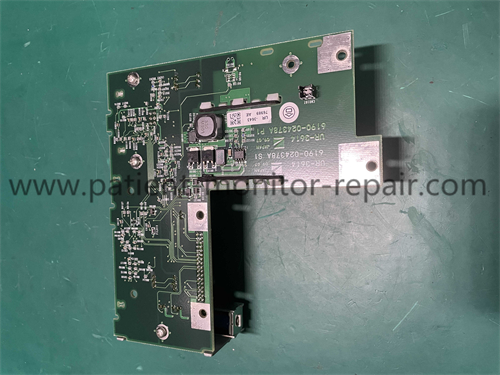

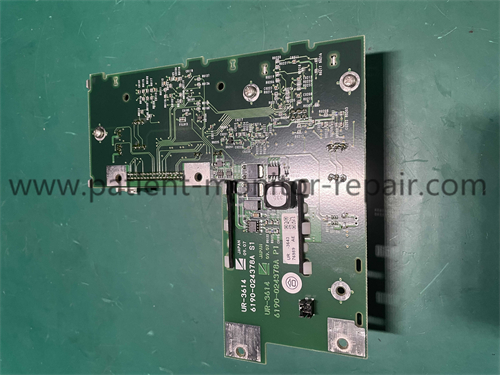

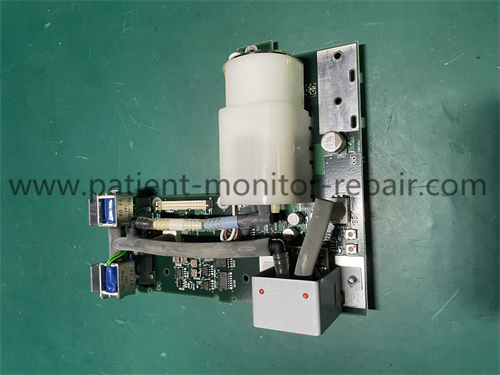

► Detailed Photos
Thank you for your time, if you are interested in Nihon Kohden BSM-2301C Patient Monitor NIBP & Hall Sensor Board UR-3614 UR-3643, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours, wish you a happy life.
