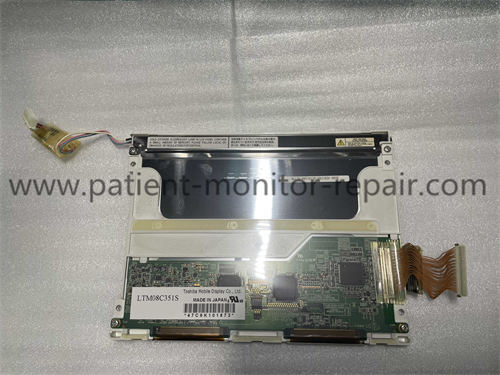

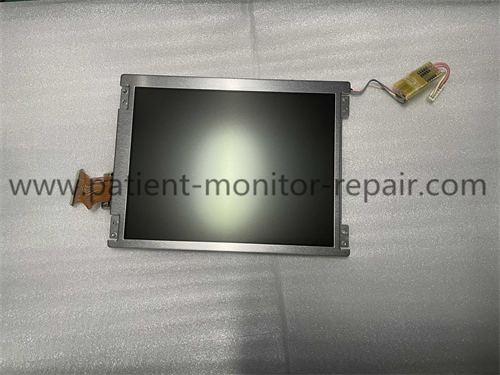

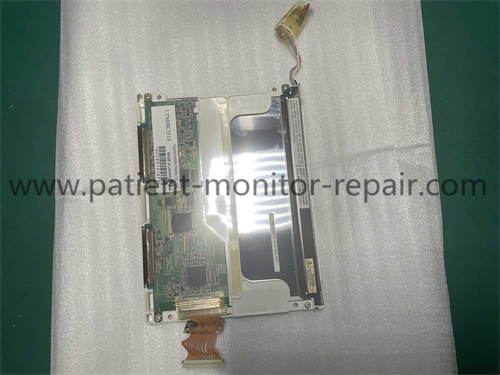

Nihon Kohden BSM-2301C Patient Monitor Display Assembly LTM08C351S

Viewing area:

170.4 mm × 127.8 mm

Waveform display mode:

Non-fade moving or non-fade fixed

Resolution:

800 × 600 dots

Maximum number of waveform trace:

5 traces

Sweep speed:

25 mm/s, 50 mm/s (Respiration and CO2 low speed: 1.56 mm/s, 6.25 mm/s)

Sweep width:

about 124 mm at 25 mm/s sweep speed

Waveform display color:

12

Numeric display color:

12

Waveform freeze:

Provided

Display waveforms:

ECG, respiration, IBP, SpO2 pulse wave and CO2

Display sensitivity:

10 mm/mV ±5% (at ×1 sensitivity)

Sensitivity control:

×1/4, ×1/2, ×1, ×2, ×4, or AUTO

Pacing spike display:

Available
