Nihon Kohden BSM-2301C Life Scope Patient Monitor Parameter Panel
Announcer: PMR Med Release Time：2025-01-06
Parameter Panel for Nihon Kohden BSM-2301C
Nihon Kohden BSM-2301C Life Scope Patient Monitor Parameter Panel
► Brief Description
Nihon Kohden BSM-2301C Life Scope Bedside Patient Monitor Parameter Panel is an important part of the device because there are various interfaces on the side frame for connecting different monitoring sensors and external devices. For example, there is an interface for connecting ECG electrodes to obtain the patient's ECG signal; there is also an interface for connecting a blood pressure cuff to measure non-invasive blood pressure; and an interface for connecting a blood oxygen saturation probe to monitor the oxygen content in the patient's blood. In addition, there will be an interface for connecting a temperature probe, etc.

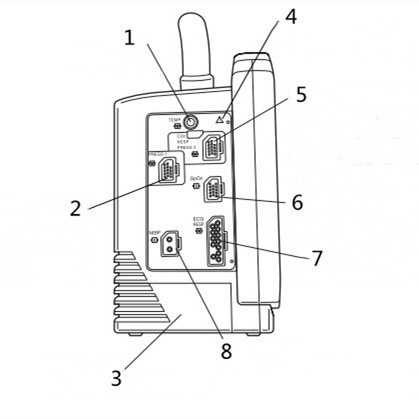

► Major Parts and Keys
|
1. |
TEMP socket |
Connects to the temperature probe cord. |
|
2. |
PRESS 1 socket |
Connects to the IBP connection cord. (Not available on BSM-2301/2351.) |
|
3. |
Battery box |
For the optional battery pack. |
|
4. |
Refer to Warning and Caution in the "General Safety Information" section. |
|
|
5. |
Multi-parameter socket |
Connects to the connection cord of the parameter to be monitored ((PRESS, CO2 or respiration by thermistor method). The type of parameter is automatically recognized. |
|
6. |
SpO2 socket |
Connects to the SpO2 connection cord. |
|
7. |
ECG/RESP socket |
Connects to the ECG connection cord. |
|
8. |
NIBP socket |
Connects to the air hose. |

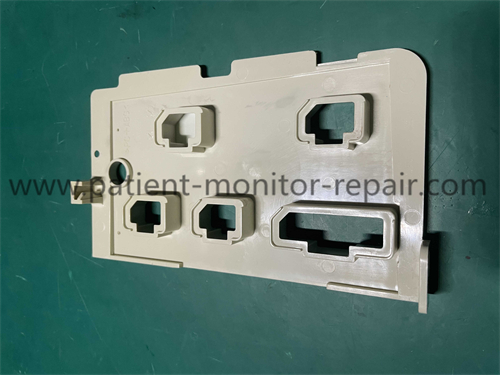

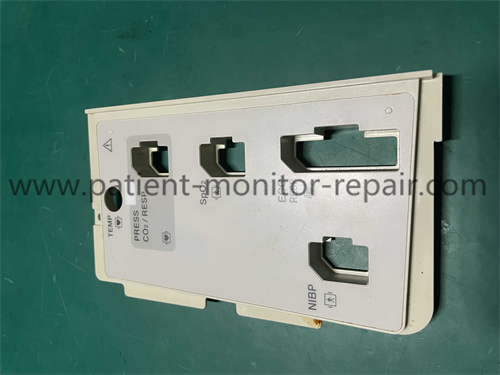

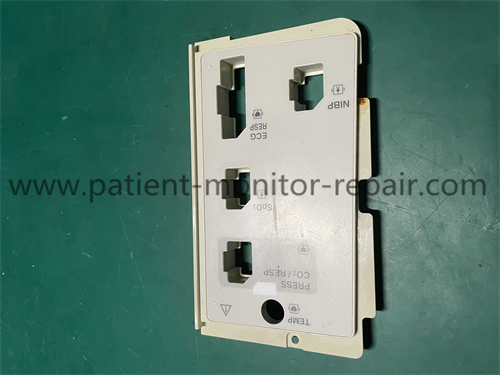

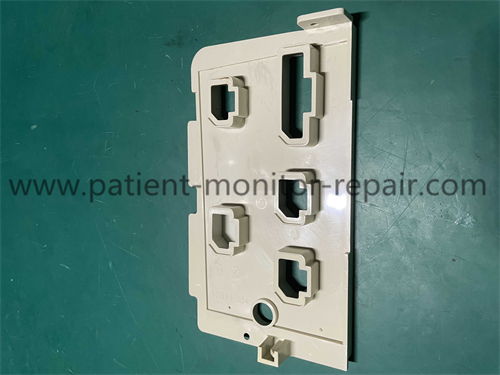

► Detailed Photos
Thank you for your time, if you are interested in Nihon Kohden BSM-2301C Life Scope Patient Monitor Parameter Panel, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours, wish you a happy life.
