Mindray MEC-1000 Patient Monitor Spare Parts Keypad Board P/N: M1K1-20-22357

Mindray MEC-1000 Keypad Board M1K1-20-22357

Mindray MEC-1000 Patient Monitor Spare Parts Keypad Board P/N: M1K1-20-22357

► Brief Description

Mindray MEC-1000 Keypad Board M1K1-20-22357 - This component is an indispensable part of this patient monitor and makes the user's operation easier and faster. It is mainly installed on the lower front part of the MEC-1000 patient monitor. Each button corresponds to the corresponding function, including Power Button, MAIN, FREEZE, SILENCE, RECORD, START, MENU. There is usually a knob to better control the screen elements, but it is not together with the keyboard and exists independently.

► Specification

► working principle

The Mindray MEC-1000 Keypad Board M1K1-20-22357 can receive input signals detected from the module and convert them into codes and send them to the main board; after receiving the codes, the main board sends instructions to the keyboard, and the keyboard will execute on the machine according to the instructions. Corresponding functions.

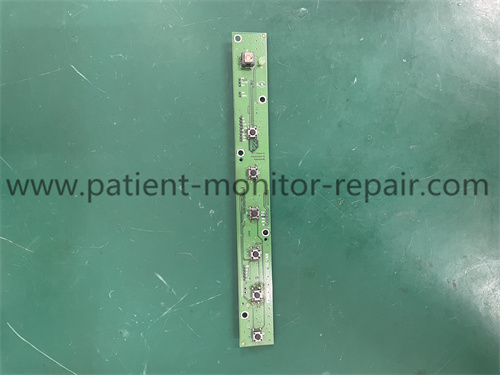

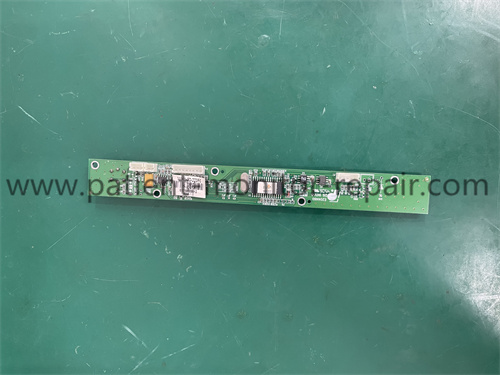

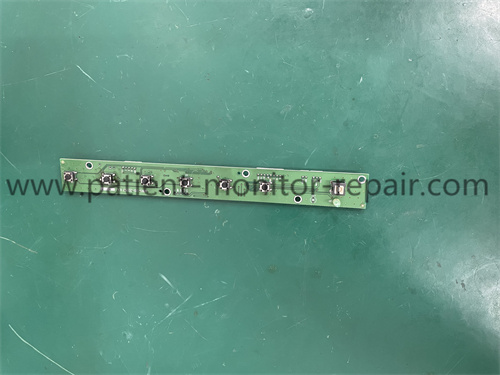

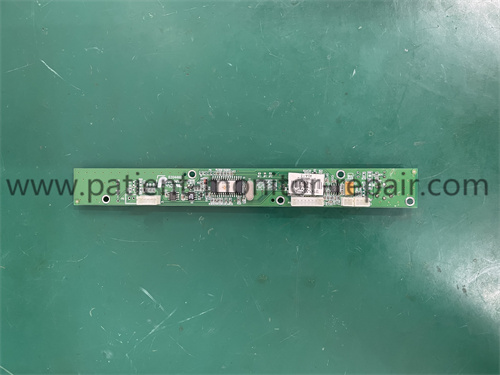

► Detailed Photos

Thanks for your time, if you are interested in Mindray MEC-1000 Patient Monitor Spare Parts Keypad Board P/N: M1K1-20-22357, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours , wish you a happy life.

Tags： Mindray MEC-1000 Patient Monitor Keypad Board M1K1-20-22357, Keypad Board, M1K1-20-22357,
