Mindray MEC-1000 Monitor Power Board

Mindray MEC-1000 Patient Monitor Power Supply Board and Power Plug Assembly 9200-20-10538 9200-30-10489

► Brief Description

Mindray MEC-1000 Monitor Power Board - It is the core component of the entire patient monitor and an important part of the entire monitor. The general power supply consists of a power board, a backlight board, a battery and a fan, but this component also has an interface for external power supply. The main function of the power board is to convert AC power into 5V and 12V DC voltage, which is used to power other parts of the patient monitor.

► Specification

►More Details

About power supply

The power supply includes not only this main power board, but also the backlight board, battery, and fan. The main function of the backlight panel is to provide power for the LCD display. The MEC-1000 patient monitor will generate high temperatures when working, and a small fan that requires DC input can also be used to achieve good ventilation.

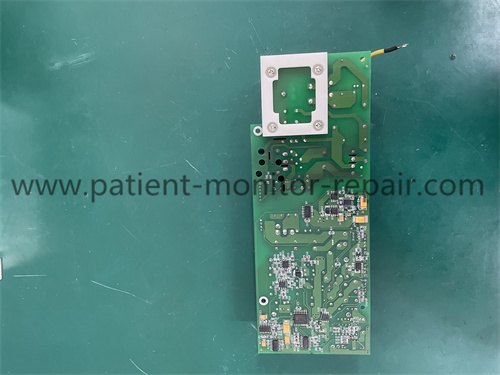

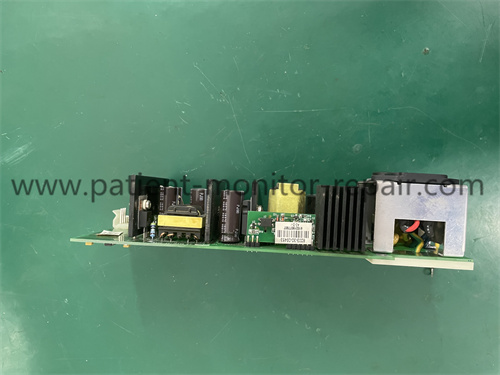

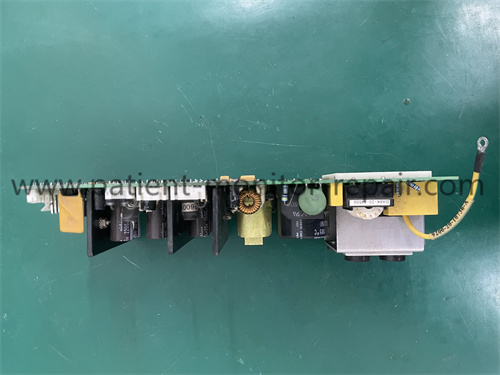

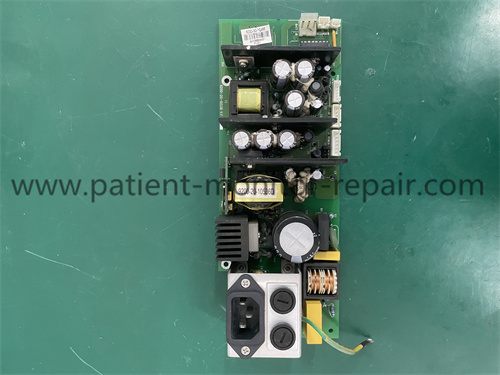

► Detailed Photos

Thanks for your time, if you are interested in Mindray MEC-1000 Patient Monitor Power Supply Board and Power Plug Assembly 9200-20-10538 9200-30-10489, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours , wish you a happy life.
