Medtronic Physio-Control LIFEPAK 20 (LP20) Defibrillator Capacitor Support Brackets 21300-004619 Pla

Medtronic LIFEPAK 20 LP20 Capacitor Brackets

Medtronic Physio-Control LIFEPAK 20 (LP20) Defibrillator Capacitor Support Brackets 21300-004619 Plastic Buckle

► Brief Description

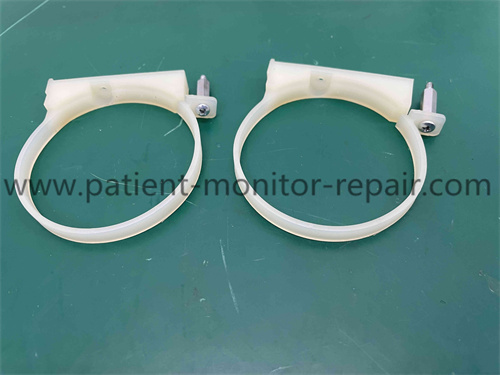

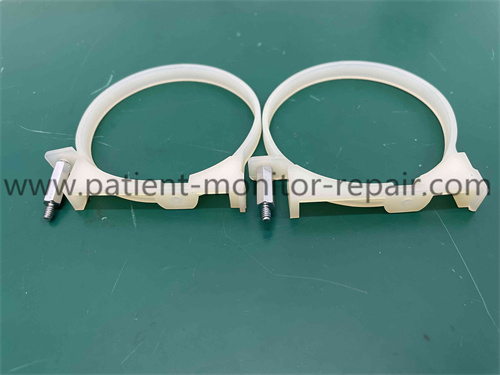

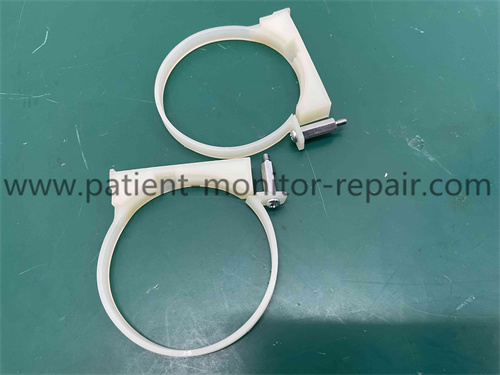

Medtronic LIFEPAK 20 LP20 Capacitor Brackets are compatible with the LIFEPAK 20 (LP20) Defibrillator. Its main function is to fix the capacitors that need to be installed on the machine to prevent accidents such as displacement or falling off of the capacitors. Made of high-quality plastic material, the capacitor holder has a considerable lifespan and performs extremely well.

► Specification

► Energy capacitor installation

1. Make sure there are two capacitor bracket studs (22) on the power module.

2. Install capacitor shield (238) and two capacitor brackets (95) to bracket with two new 4-40 × 0.312 screws (173); torque to 6.8 in-lb (if bracket removed).

3. Install the capacitor cover with foam tape.

4. Install capacitor into capacitor bracket (95) with capacitor cable end toward printer shroud and warning label on top of capacitor.

5. Make sure the capacitor bracket is centered on the foam tape and install two new 4-40 × 0.312 Screws (173) into the capacitor bracket; torque to 6.8 in-lb.

6. Install the white connector pin of the inductor resistor assembly into pin 5 of the capacitor J2 connector.

7. Connect the capacitor cable to the A04 therapy PCB at J2

► Detailed Photos

Thanks for your time, if you are interested in Medtronic Physio-Control LIFEPAK 20 (LP20) Defibrillator Capacitor Support Brackets 21300-004619 Plastic Buckle, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours , wish you a happy life.

Tags： Medtronic Physio-Control LIFEPAK 20 (LP20) Defibrillator Capacitor Support Brackets 21300-004619, Capacitor Support Brackets, 21300-004619,

Copyright statement:If not specified, the articles on this site are all PMR Med originals. Please indicate the source and attach the link to the Medtronic Physio-Control LIFEPAK 20 (LP20) Defibrillator Capacitor Support Brackets 21300-004619 Pla article for reprinting.
