Medtronic Lp20 Lp20e Defibrillator Recoder Printer Model: XL50, P/N: 600-23003-09, Mpcc P/N: 3200920

Med-tronic Defibrillator Recoder Printer 600-23003-09

Med-tronic LP20 LP20E Defibrillator Recoder Printer MODEL:XL50, P/N:600-23003-09, MPCC P/N:3200920-000

• Brief Description

Medtronic Defibrillator Recoder Printer 600-23003-09 is compatible with Medtronic LIFEPAK 20/20E Defibrillator/Monitor. The printer recorder can present the patient data recorded by the defibrillator on paper through thermal printing, which can be more intuitive and clear for medical staff to refer to and help them make clinical decisions.

The Medtronic Defibrillator Recoder Printer 600-23003-09 is a 50mm stepper motor driven recorder, its working process is: receive serial data and commands from the A05 user interface PCB, convert the print data, and control the motor drive signal to Perform the "muscle" part of the print. The printer returns status signals from the paper feed sensor and printer door to the A05 UI PCB.

• Specifications

• Installation Instructions

Installing Printer Paper

To install a new roll of paper into the printer:

1. Press the printer button on the left side of the unit to open the printer door.

2. Remove the old paper roll.

3. Insert the new paper roll into the paper compartment with the end under the roll.

NOTE: The printer will not print correctly if the end of the roll extends beyond the top of the roll when inserted. The roll must be inserted with the end sticking out from under the roll.

4. Close the printer door. Make sure the end of the paper sticks out from the side of the printer.

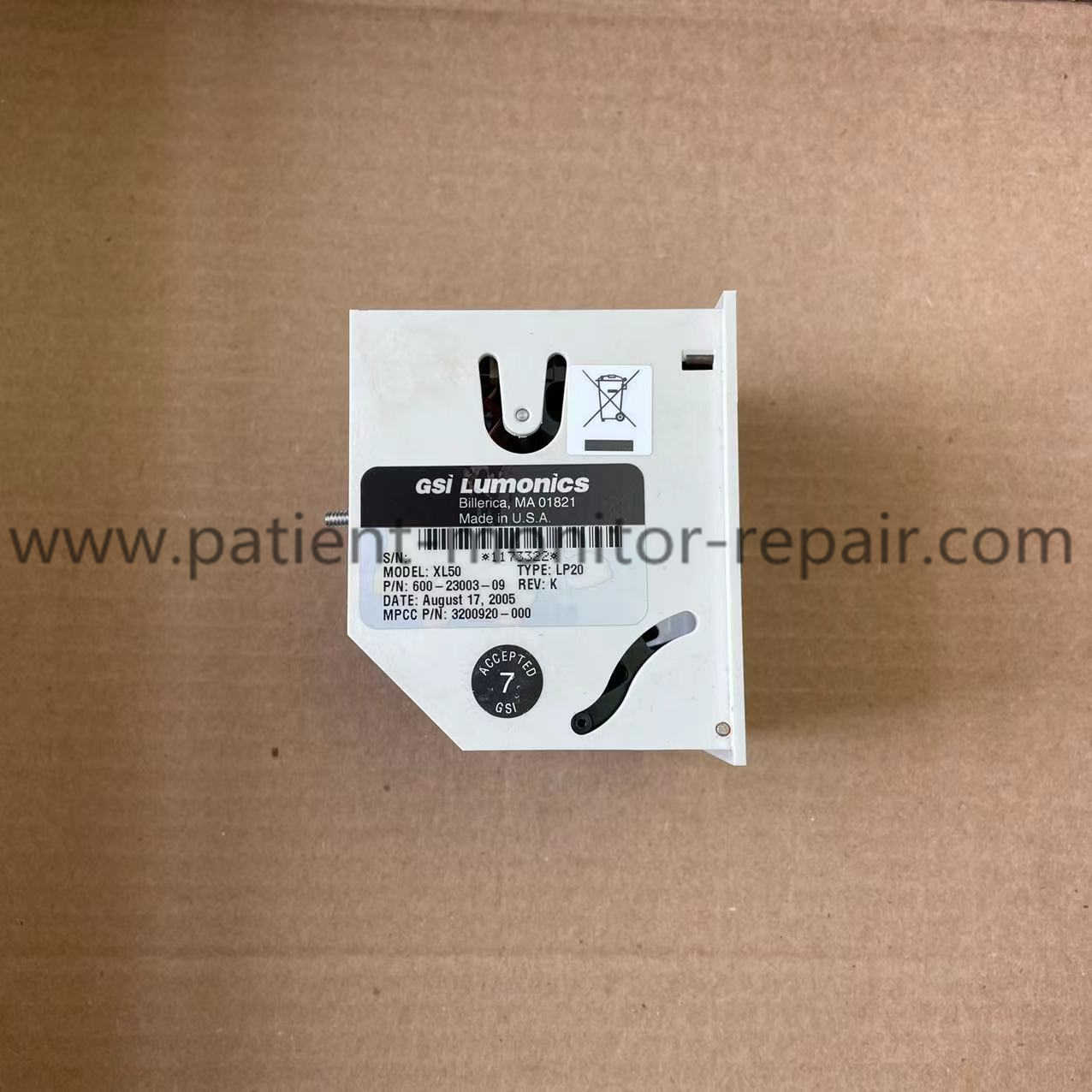

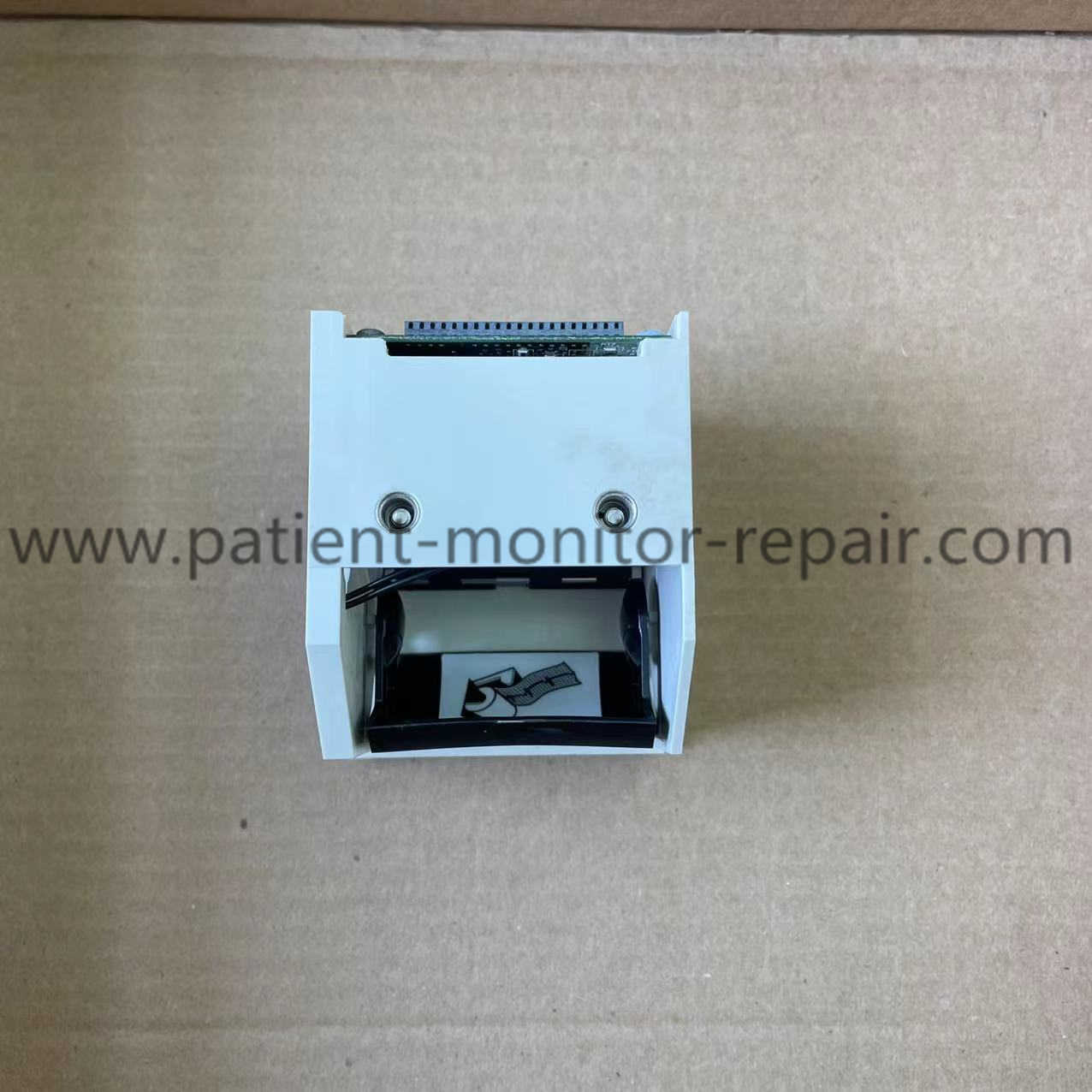

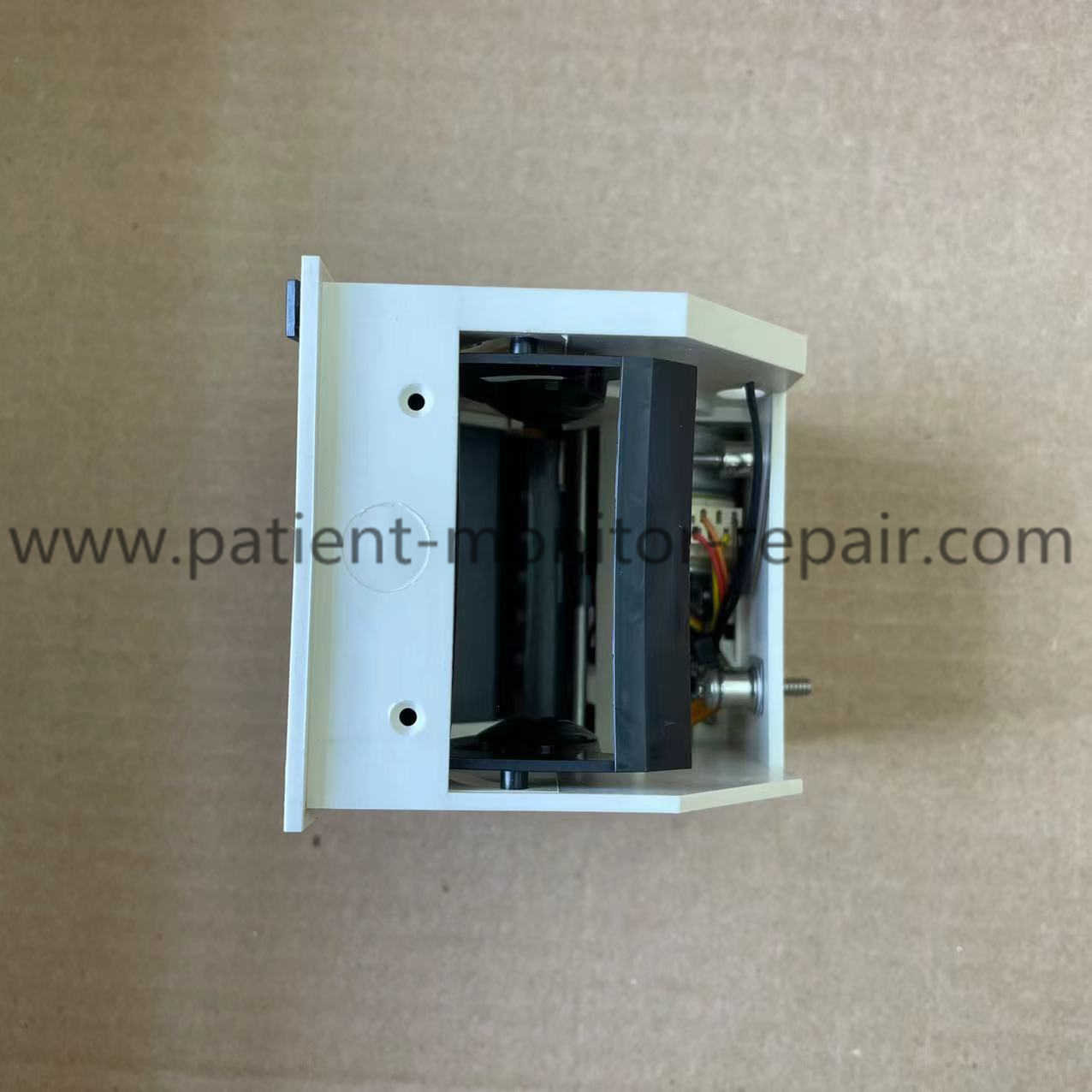

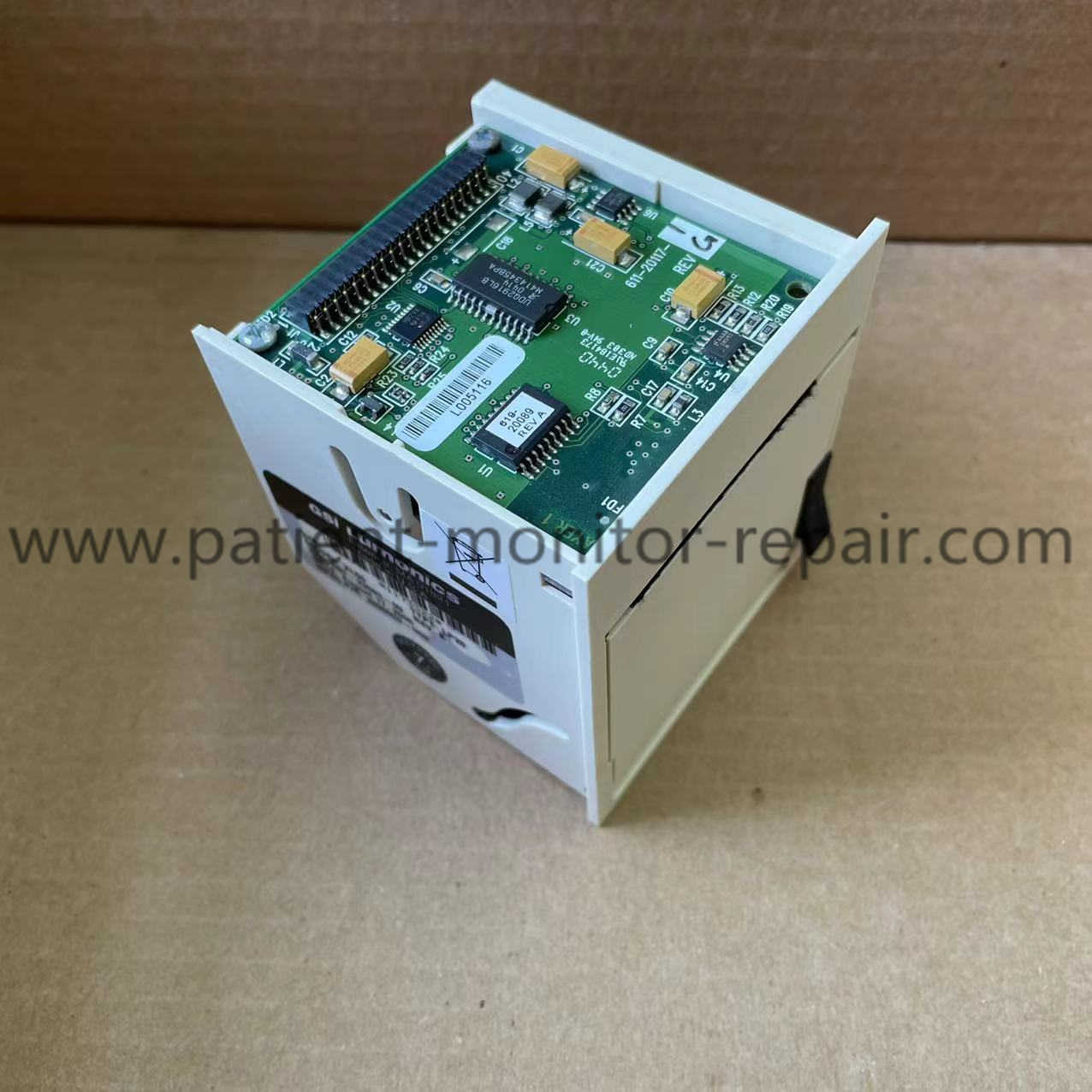

• Detailed Photos

Thank you for your time, if you are interested in Med-tronic LP20 LP20E Defibrillator Recoder Printer MODEL:XL50, P/N:600-23003-09, MPCC P/N:3200920-000, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours, wish you a happy life.
