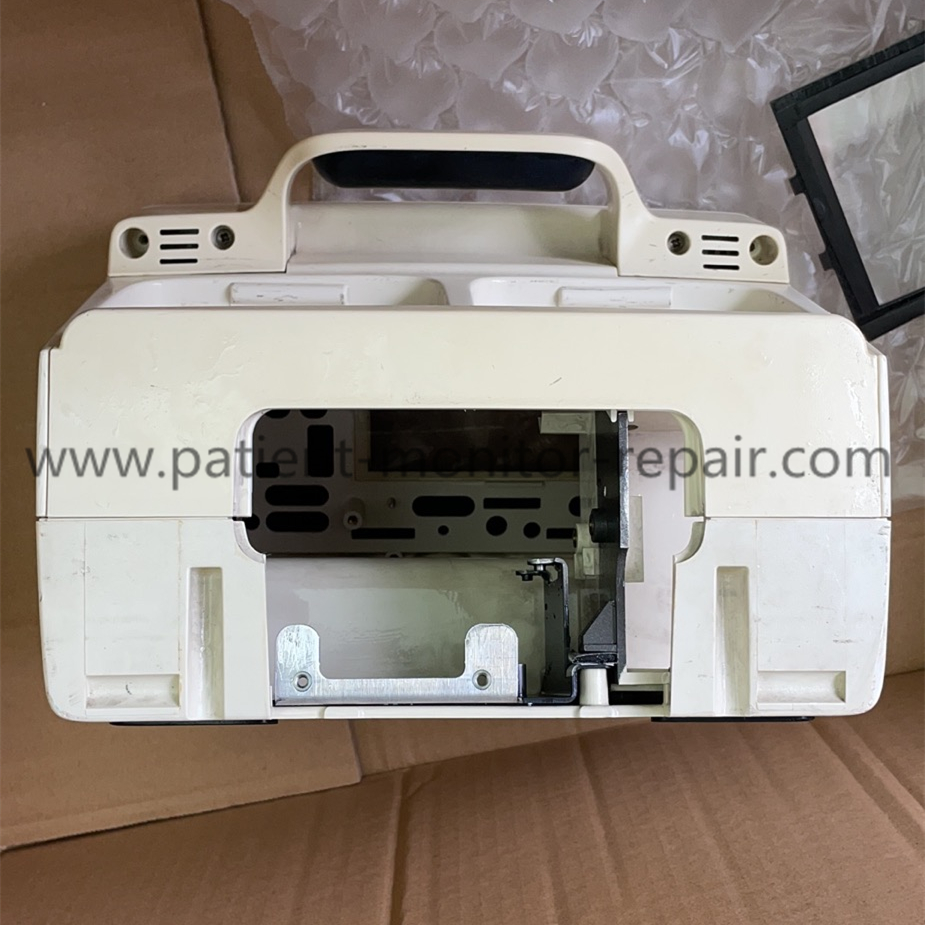

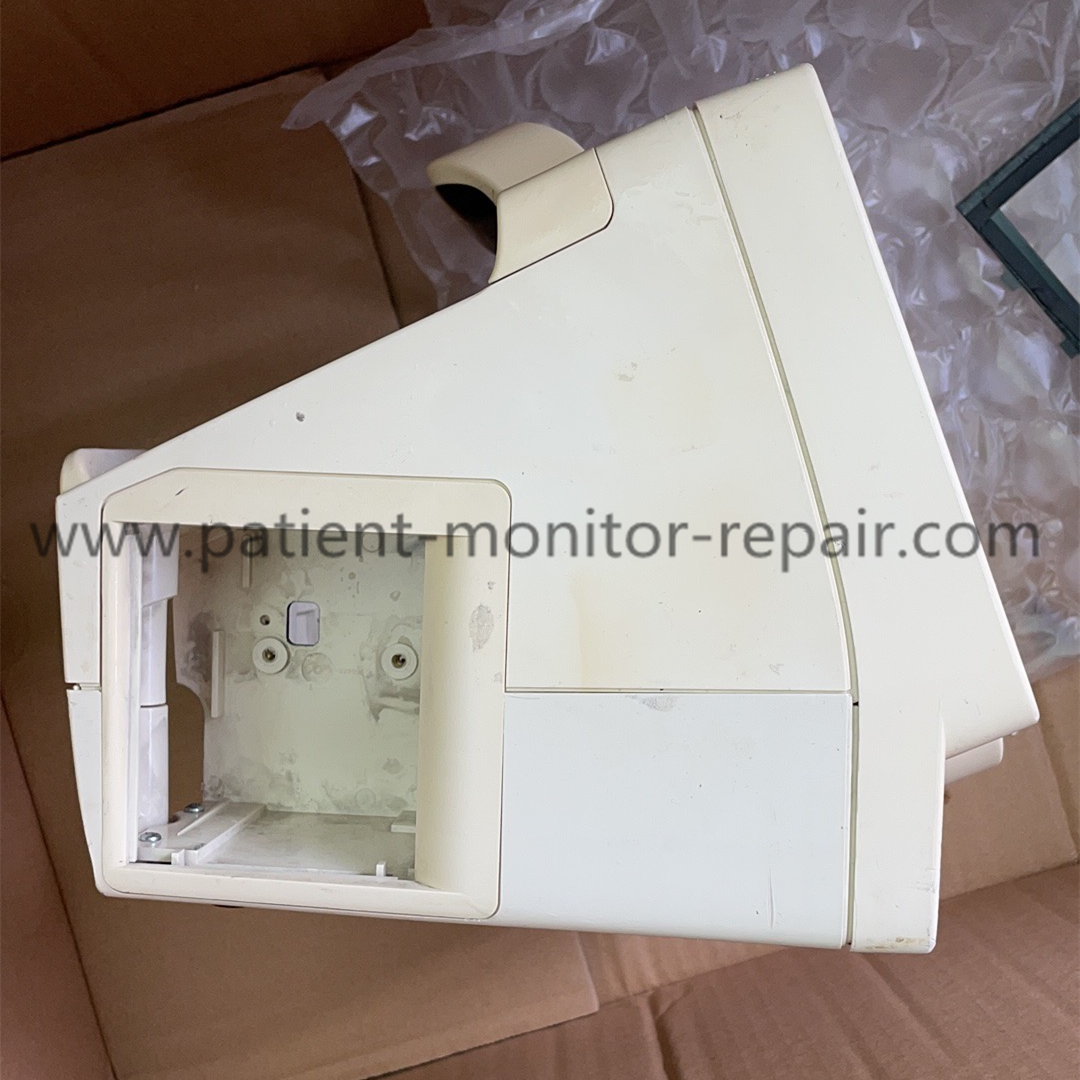

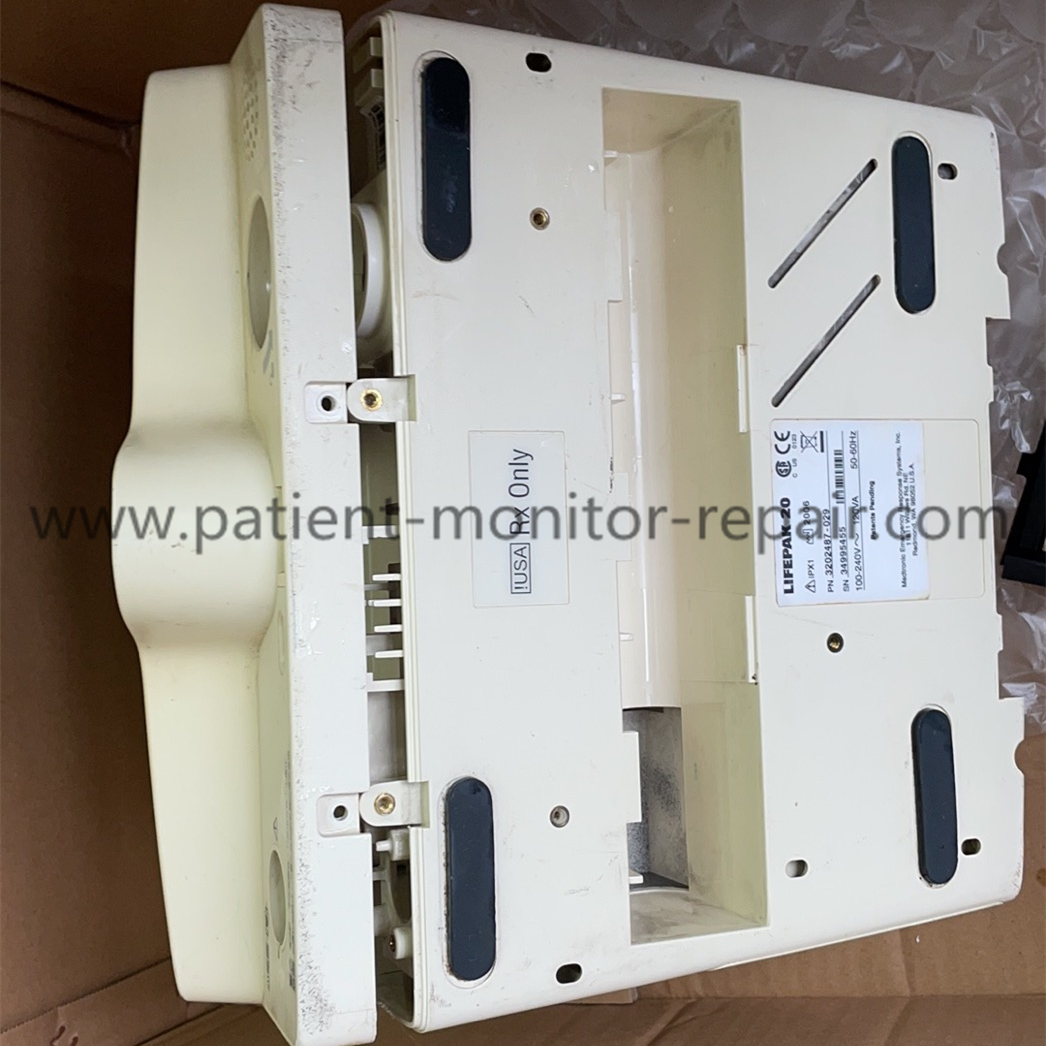

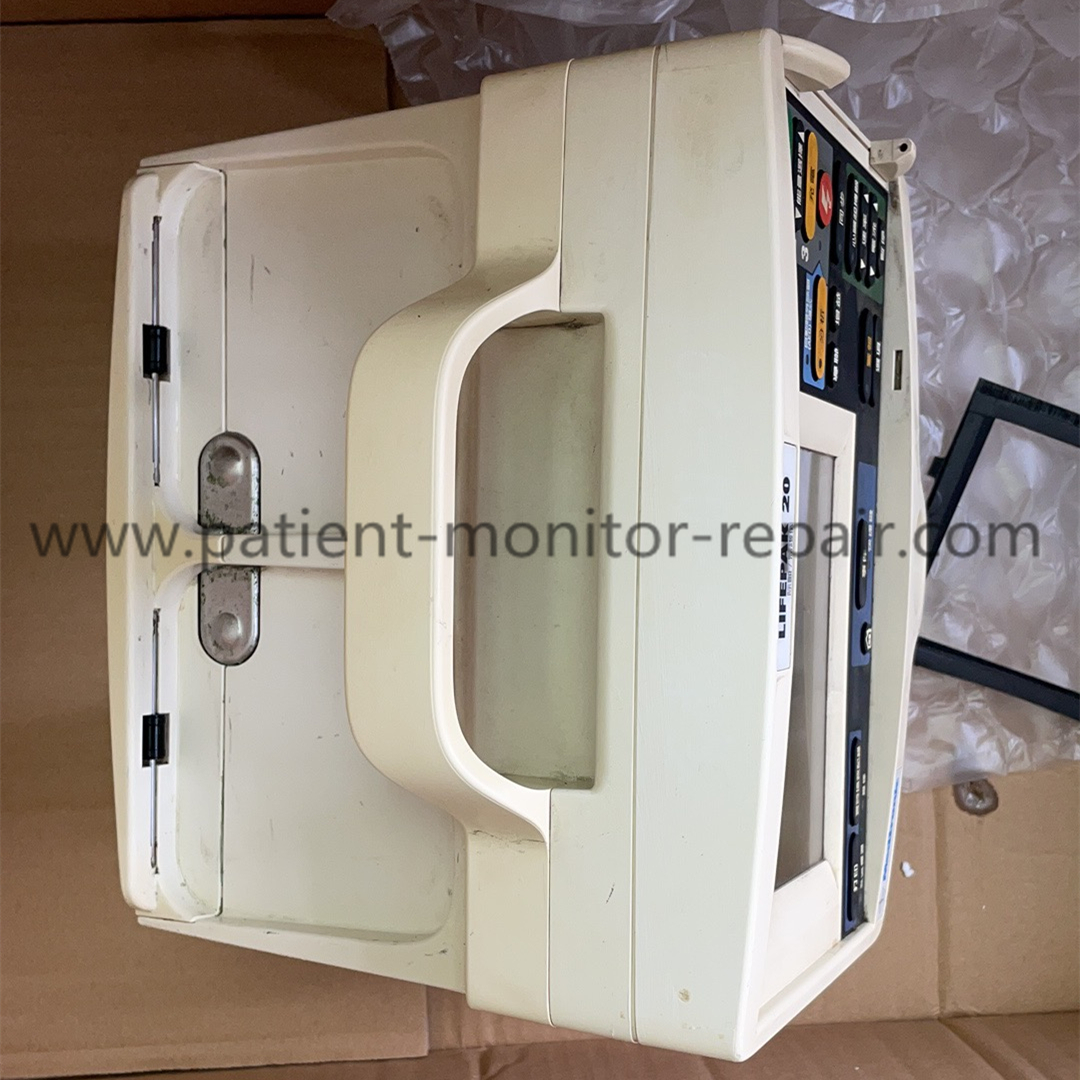

Medtroni Lifepak LP20 Defibrillator / Monitor Cover Case Medical Equipment

Product Category

Spare Parts

Product Type

Cover Case

Applicable Machine

Lifepak 20

Condition

Used But Good

Color

White

Delivery Date

3-5 Working Days

Warranty

90 Days

MOQ

1 Piece

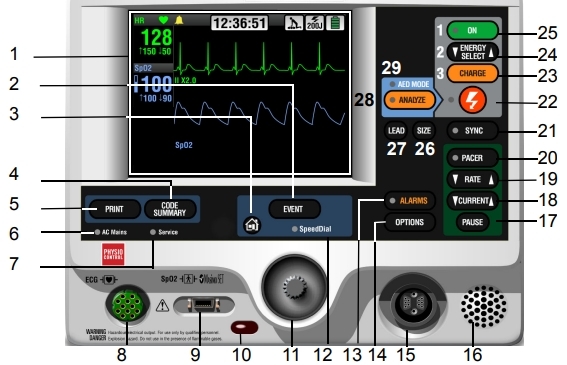

2

EVENT Control - Press to activate a user-defined event.

3

HOME SCREEN Control — Press to return to the Home Screen for the specific option or function you are configuring. Pressing this button doesn't take you to a specific screen; instead, it returns you to the main screen for the mode or event you're configuring.

4

CODE SUMMARY control—press to print the CODE SUMMARY key event log.

5

PRINT Control - Press to start and stop the printer.

6

AC Power LED - The AC power light is solid when AC power (line power) is connected

7

Service Indicator LED - Illuminates when the unit enters a service error code into the service log (accessed through the service menu).

8

ECG Cable Connector — Connection port for electrically isolated ECG patient cable.

9

SpO2 Cable Connector — Connection port for the pulse oximeter.

10

IrDA Port Connector—The infrared connection port provides wireless communication for the data management device (not available in this version).

11

SPEED DIAL SELECTOR - When activated (SPEED DIAL LED illuminated), turn (either direction) to select from a menu or overlay displayed on screen; press to confirm your selection.

12

Speed Dial LED — Lights when Speed Dial is active.

13

ALARMS CONTROL - Press to activate and silence alarms.

14

OPTIONS Control — Press to access the OPTIONS menu.

15

THERAPY CABLE CONNECTOR—Following connection ports:

-QUIK-COMBO® electrodes (standard)

-FAST-PATCH electrodes (with optional cable)

-REDI-PAK electrodes (optional)

-Standard adult and child paddles (optional)

-Internal paddles (optional)

-Rear paddles (optional)

16

Speaker — Provides audio voice prompts and tones.

17

Pause Control - Press to temporarily slow the pacing rate.

18

CURRENT CONTROL — Press to adjust pacing current.

19

RATE Control - Press to select the pacing rate.

20

PACER control - press to activate the pacer function.

21

SYNC control - press to activate sync mode.

22

SHOCK control - Press to discharge the device.

23

CHARGE control - press to charge the device.

24

ENERGY SELECT CONTROL - Press to select the energy level in manual mode.

25

ON Control - Press to turn the unit on and off. Lights up when the device is turned on.

26

SIZE Control - Press to change ECG size.

27

Lead Control — Press to change ECG leads.

28

ANALYZE control - press to activate the shock warning system.

29

AED Mode LED Indicator — Illuminates when the device is in AED mode.
