FUKUDA CardiMAX FX-7202 ECG Machine Display Operation Board PCB-6866E

Operation Board for FUKUDA FX-7202

FUKUDA CardiMAX FX-7202 ECG Machine Display Operation Board PCB-6866E

► Brief Description

FUKUDA CardiMAX FX-7202 ECG Machine Display Operation Board PCB-6866E - Responsible for controlling and managing the 110x130mm touch screen display, including image display, refresh, contrast and brightness adjustment, etc., to ensure that the ECG waveform and related information are displayed clearly and stably on the screen, so that medical staff can accurately observe and analyze.

Using highly integrated circuit design, multiple functional circuits such as display drive circuit, key scanning circuit, signal conversion circuit, etc. are integrated on a circuit board, reducing the size and complexity of the circuit board and improving the reliability and stability of the system.

In the circuit design, a variety of anti-interference measures are taken to ensure that the ECG machine can work normally in a complex medical environment.

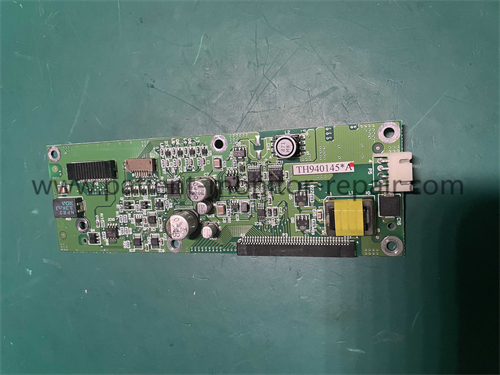

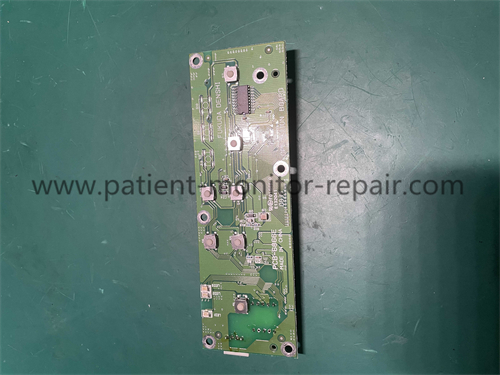

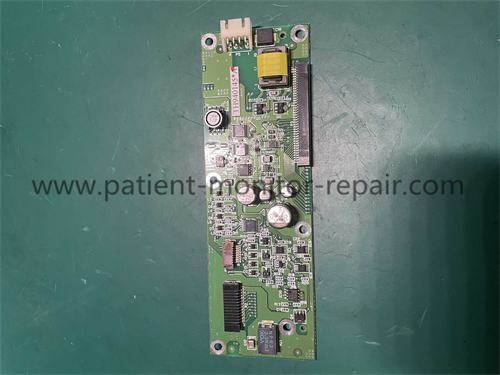

► Detailed Photos

Thank you for your time, if you are interested in FUKUDA CardiMAX FX-7202 ECG Machine Display Operation Board PCB-6866E, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours, wish you a happy life.
