FUKUDA CardiMAX FX-7202 ECG EKG Machine LCD IF Board PCB-6871A

LCD IF Board for FUKUDA FX-7202

FUKUDA CardiMAX FX-7202 ECG EKG Machine LCD IF Board PCB-6871A

► Brief Description

FUKUDA CardiMAX FX-7202 ECG EKG Machine LCD IF Board PCB-6871A, it is the interface circuit board of the ECG machine display. It is responsible for signal transmission and conversion between the main control board and the display screen of the ECG machine. It converts various signals sent by the main control board, such as ECG waveform data, operation instructions, parameter settings, etc., into a format that the display screen can recognize and process, ensuring that the image and data are accurately displayed on the display screen; at the same time, it also converts the touch operation signals fed back by the display screen into signals that the main control board can recognize, realizing human-computer interaction. It provides the necessary driving signals for the display screen to enable the display screen to work normally.

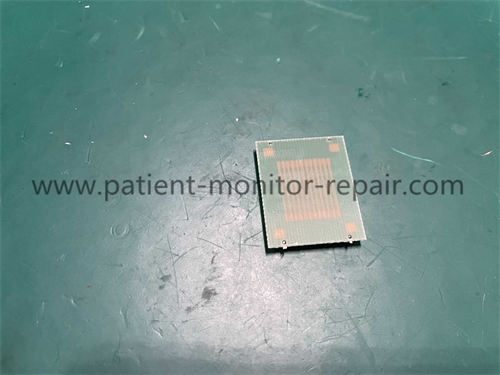

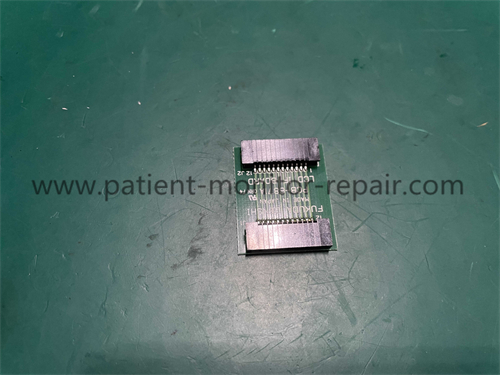

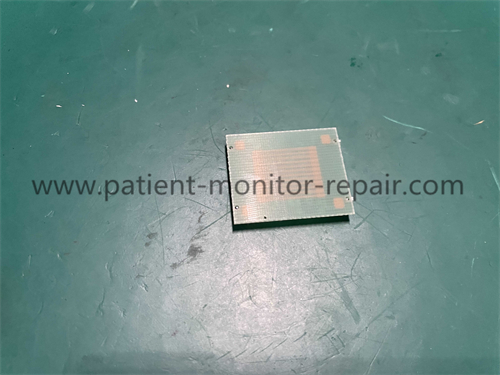

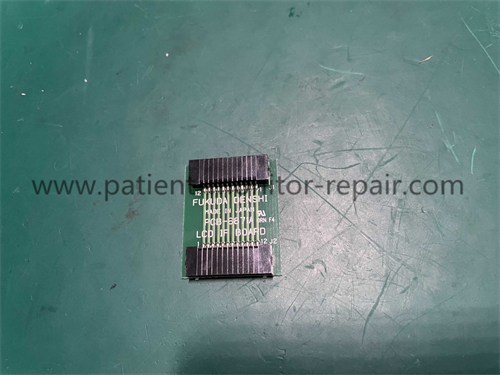

► Detailed Photos

Thank you for your time, if you are interested in FUKUDA CardiMAX FX-7202 ECG EKG Machine LCD IF Board PCB-6871A, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours, wish you a happy life.
