Edan iM8 Patient Monitor Screen Blacklight Drive Board 21.53.451988-1.0.2C with Connector Cable
Announcer: PMR Med Release Time：2024-04-19
Edan iM8 Screen Blacklight Drive Board with Cable
Edan iM8 Patient Monitor Screen Blacklight Drive Board 21.53.451988-1.0.2C E204460 with Connector Cable 01.13.000657011
► Brief Description
Edan iM8 Patient Monitor Screen Blacklight Drive Board 21.53.451988-1.0.2C E204460 with Connector Cable 01.13.000657011 - The screen of Edan iM8 Patient Monitor can clearly display various monitored patient data and waveforms. This Screen Blacklight Drive The function of the Board is to make the screen of the patient monitor glow brightly and display normally. It is mainly connected to the LCD screen and maintains the normal operation of the screen. The LCD on the Edan iM series patient monitor realizes backlight drive through the backlight board, and the display driver board realizes the transmission of keyboard signals and the conversion of video signals. The video signal is transmitted to the display driver board through J16 on the X5 motherboard, and the video signal conversion is completed. This circuit board is often associated with high voltage hazards, so be sure to leave it to professionals when installing or dismantling it.
► Specification
|
Brand: |
Edan |
Product Category: |
Monitoring |
|
Product Type: |
Spare Parts |
Product Name: |
Blacklight Drive Board |
|
Part Number: |
21.53.451988-1.0.2C |
Parts: |
Connector Cable |
|
Connector Cable PN: |
01.13.000657011 |
Patient Application: |
iM8 |
|
Condition: |
Used - Good |
Warranty: |
90 Days |
|
Delivery Date: |
3 - 5 Working Days |
Package: |
Standard |
|
Payment Method: |
Western Union, Bank T/T, Paypal |
||
|
Transpotation: |
DHL, FedEx, UPS, TNT, EMS, By Air, etc. |
||

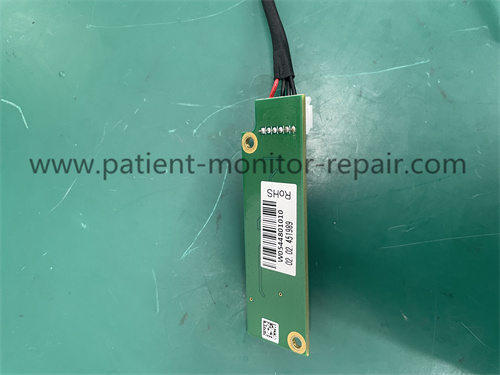

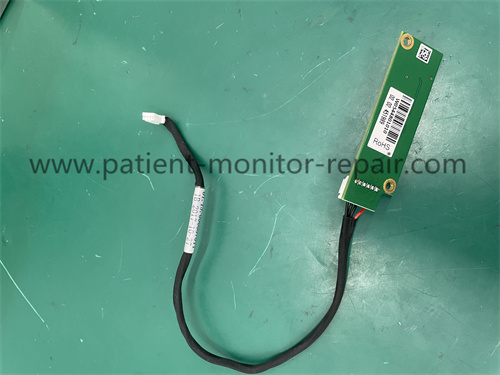

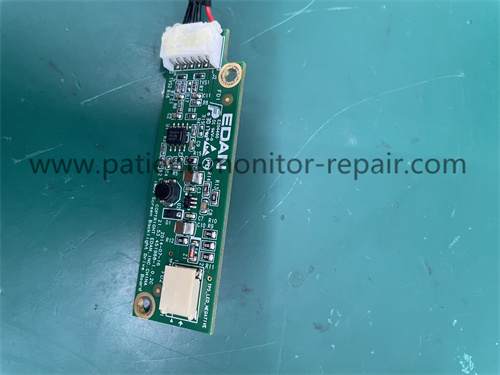

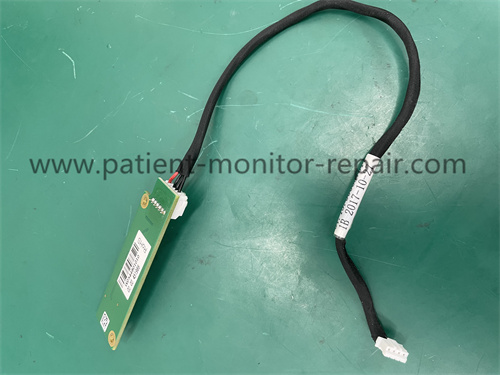

► Detailed Photos
Thanks for your time, if you are interested in Edan iM8 Patient Monitor Screen Blacklight Drive Board 21.53.451988-1.0.2C E204460 with Connector Cable 01.13.000657011, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours, wish you a happy life.
