Edan iM8 Patient Monitor Keyboard Keypad Board MS1R-16989-V1.1 02.02.19013-11

Keyboard MS1R-16989 for iM8 Monitor

Edan iM8 Patient Monitor Keyboard Keypad Board MS1R-16989-V1.1 02.02.19013-11

► Brief Description

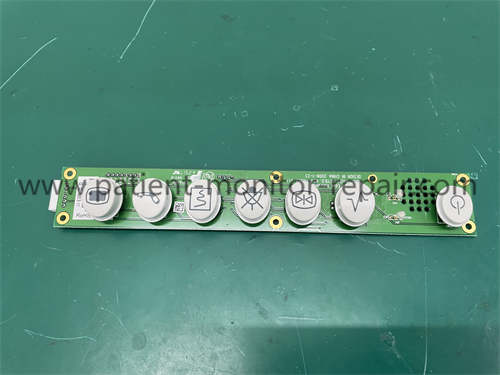

Edan iM8 Patient Monitor Keyboard Keypad Board MS1R-16989-V1.1 02.02.19013-11 - It is the key on the monitor to help the user to operate quickly, It includes Menu, Start, Record, Mute, Freeze, Main, and a power switch button. Specific introduction to take down:

1. Menu: Press to call up the SYSTEM MENU.

2. Start: Press to fill air into cuff and start blood-measuring.

3. Record: Press to start a real-time recording.

4. Mute: Press this button to pause or turn off the auditory alarm as needed.

5. Freeze: In normal mode, press this button to freeze all the waveforms on the screen. In FREEZE mode, press this button to restore the waveform refreshing.

6. Main: Press this button to return to the main interface.

► Specification

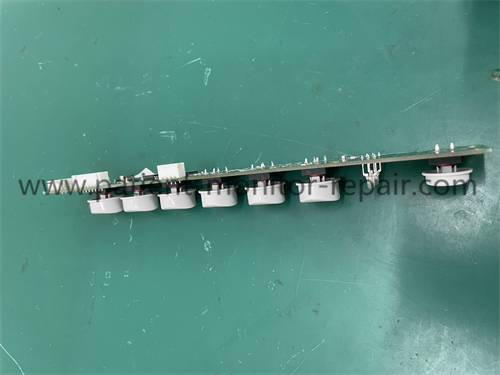

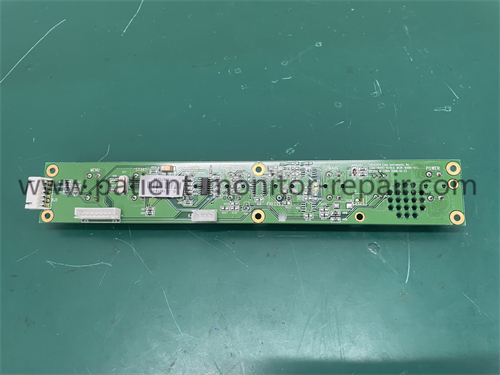

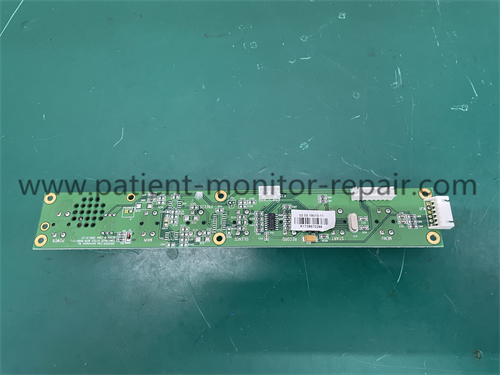

► Detailed Photos

Tags： Edan iM8 Patient Monitor Keyboard Keypad Board MS1R-16989-V1.1 02.02.19013-11, Keyboard, MS1R-16989,
