Announcer: PMR Med Release Time:2024-09-03
TOCO & US Connector for Edan F6
Edan F6 Fetal Monitor TOCO & US Connector Assembly 21.53.451265
► Brief Description
Edan F6 Fetal & Maternal Monitor TOCO & US Connector Interface Assembly is an important part of the monitor, which mainly connects the relevant probes with the monitor host and transmits signals.
1. TOCO refers to the connection interface of the uterine contraction pressure probe. The uterine contraction pressure probe is used to monitor the pressure changes caused by uterine contraction.
2. The US interface is mainly used to connect the ultrasonic fetal heart probe. The ultrasonic probe can transmit and receive ultrasonic waves to detect the fetal heartbeat and other information.

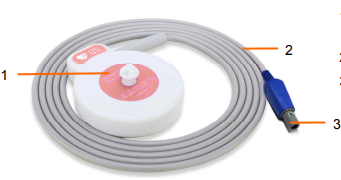

► Transducer
1. |
US Transducer Sensor (Pink Labeled) |
2. |
Transducer Cable |
3. |
Transducer Connector |
1. |
TOCOS Transducer Sensor (Blue Labeled) |
2. |
Transducer Cable |
3. |
Transducer Connector |
When plugging and unplugging the TOCO and US probes, hold the plug of the probe, align it with the corresponding interface on the monitor, and insert or unplug it smoothly and vertically. For the TOCO probe, pay attention to the position of the card slot of its interface and ensure that the probe is fully inserted into the card slot to ensure the stability of the connection. For the US probe, be careful not to twist the cable with excessive force when inserting it to prevent damage to the internal circuit.

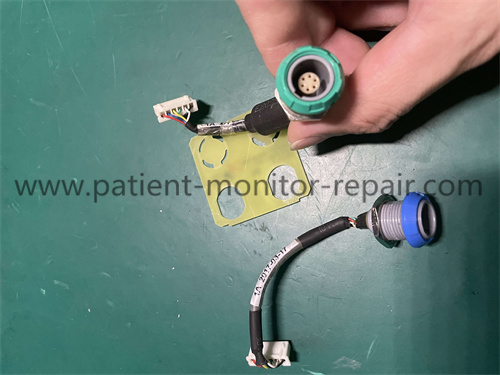

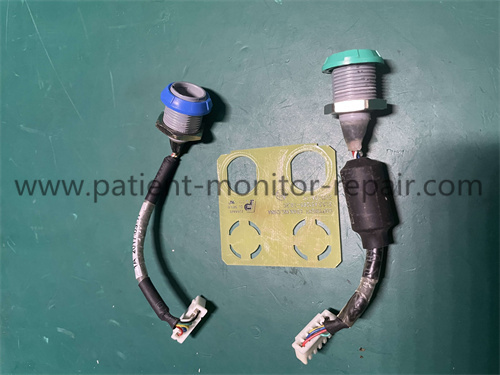

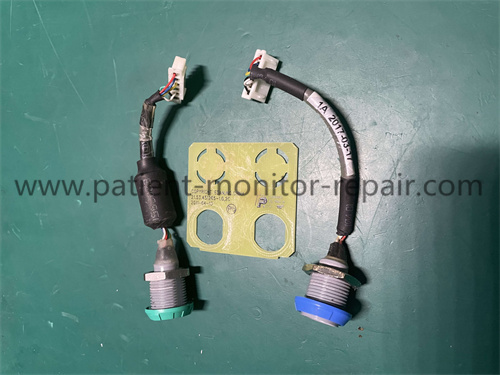

► Detailed Photos
Thank you for your time, if you are interested in Edan F6 Fetal Monitor TOCO & US Connector Assembly 21.53.451265, or have any suggestions for us, please feel free to contact us. We will reply you within 12 hours, wish you a happy life.
